| Brand |
VIGNAL |
| Product Type |
Complete lamp |
| Voltage |
12/24 V |
| Source |
Bulbs |
| Connector |

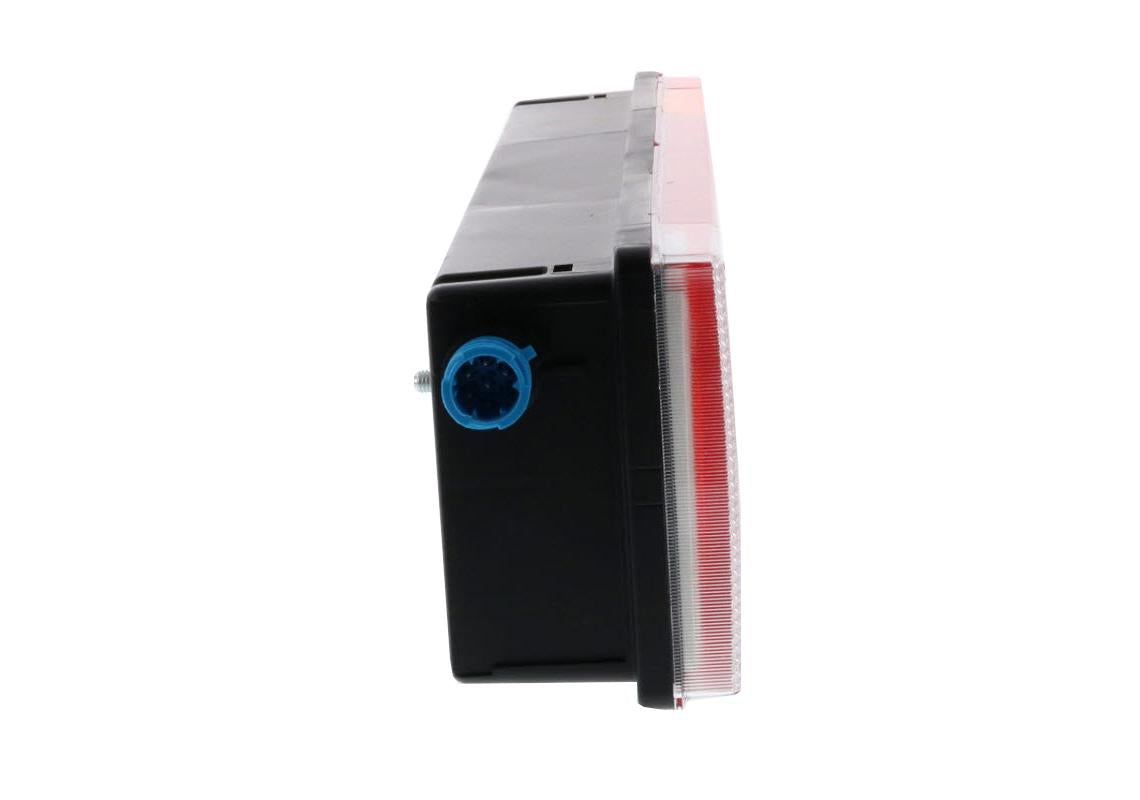

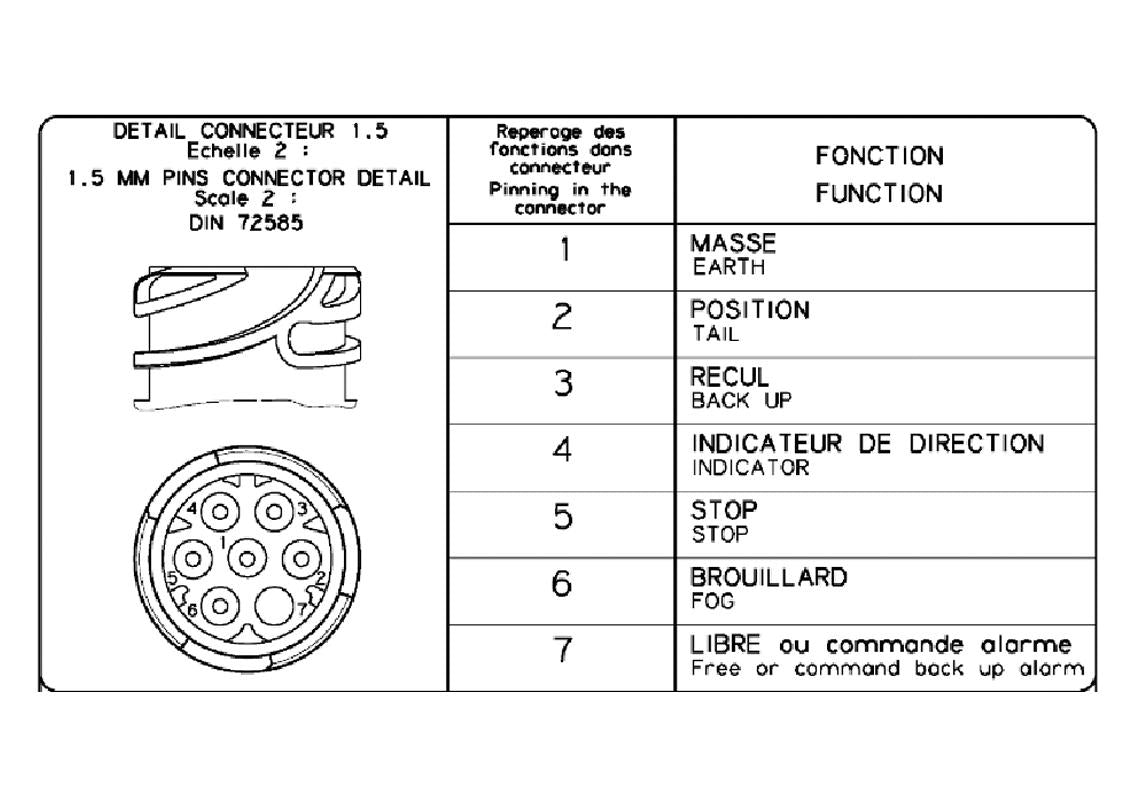

AMP 1.5 – 7 pin side connector |
| Mounting Direction |
Horizontal + Vertical |
| Side |
Right or Left |
| Shape |
Rectangle |

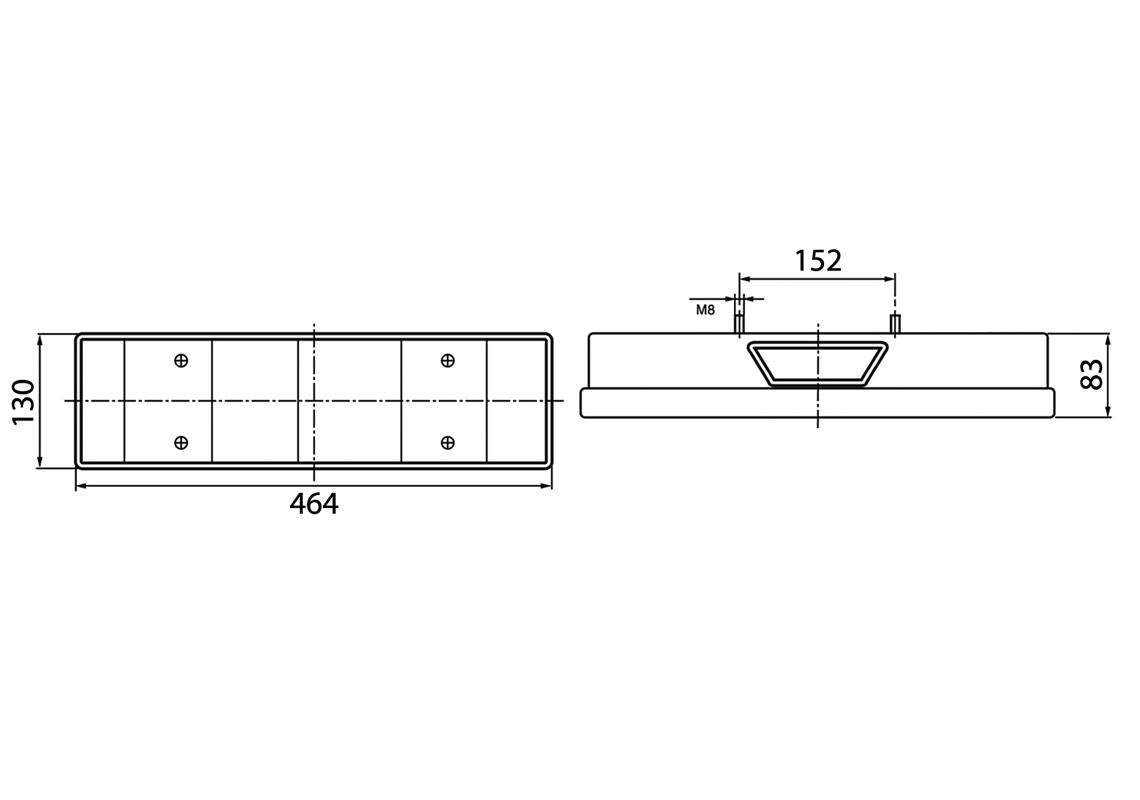

| Fixation Bolt Distance |
152 mm |
| Length |
464 mm |
| Width |
130 mm |
| Depth |
83 mm |
| Main Functions |
Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector |
| ADR |
ADR |
| ECE |
E2 88035 |
| Industry |
Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
