Description
| Brand | VIGNAL |
| Manufacturer | Renault Trucks, Volvo Trucks |
| Voltage | 24V |
| Source | LED |
| Color | Amber / Orange |
| Connector | AMP MCP 2.8 2 pin |
| Mounting Direction | Horizontal + Vertical |
| Lens Material | PMMA |
| Shape | Rectangle |

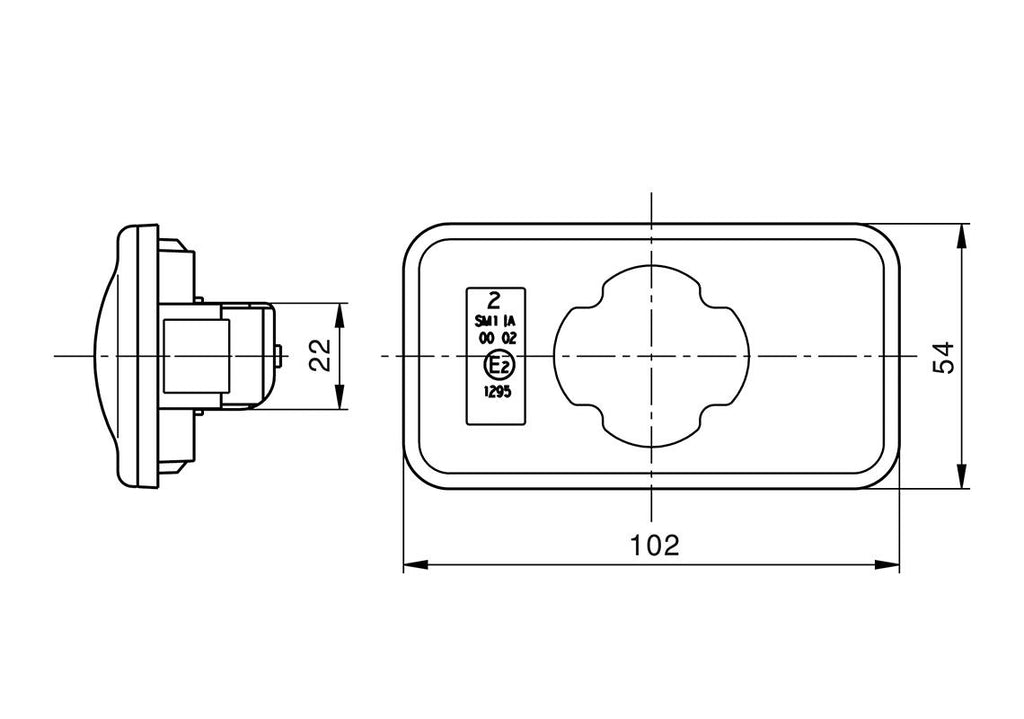

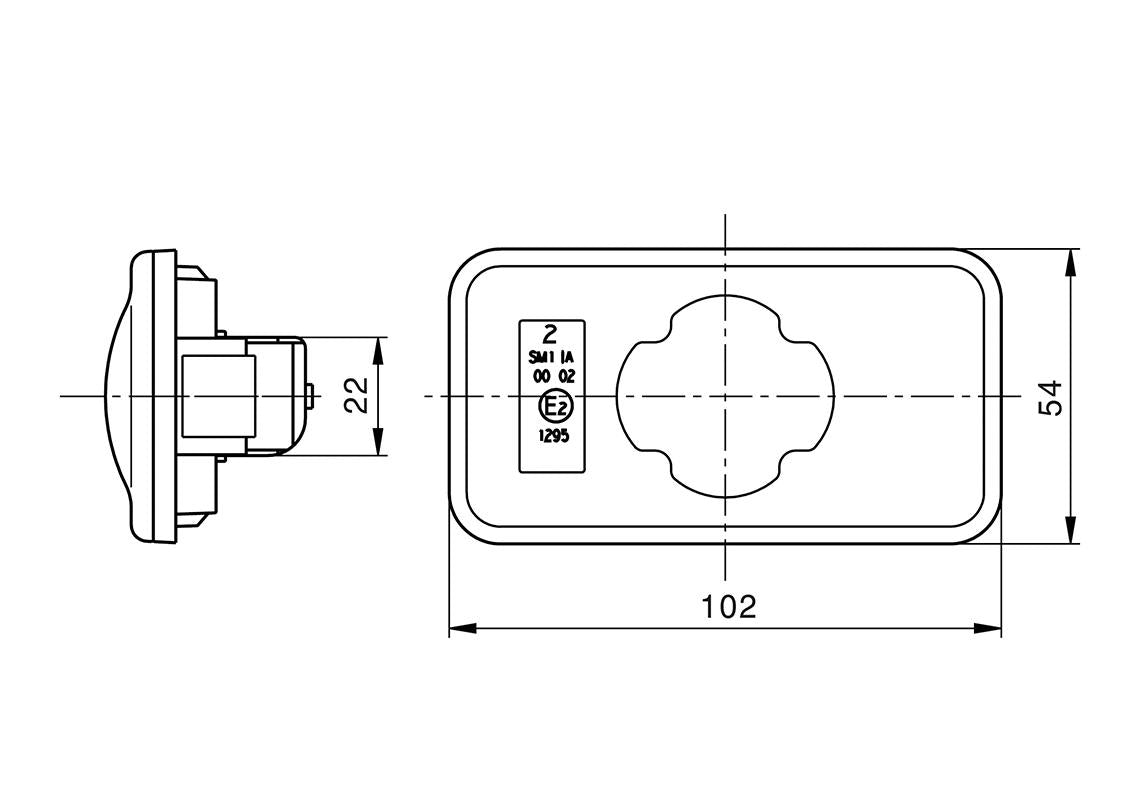

| Length | 102 mm |
| Width | 54 mm |
| Main Functions | Side position |
| Specific Functions | Reflector |
| Industry | Agriculture, Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
| Constructor | Model | Reference | Start date |
| RENAULT TRUCKS | EURO 6 - T / K / C --> 520 CH | 7482392733 | 11/2013 |
| VOLVO | FL-FM-FH | 82392733 | 2001 |
| MAISONNEUVE | MAISONNEUVE | ||
| VOLVO | FL-FM-FH | 23387844 | 01/10/2018 13:52 |
