Description
| Technical Characteristics | |
|---|---|
| Brand | VIGNAL |
| Product Type | Complete lamp |
| Voltage | 24V |
| Source | LED |
| Connector | AMP 1.5 - 7 pin side connector |
| Mounting Direction | Horizontal |
| Side | Right |
| Lens Material | Polycarbonate |
| Shape | Rectangle |

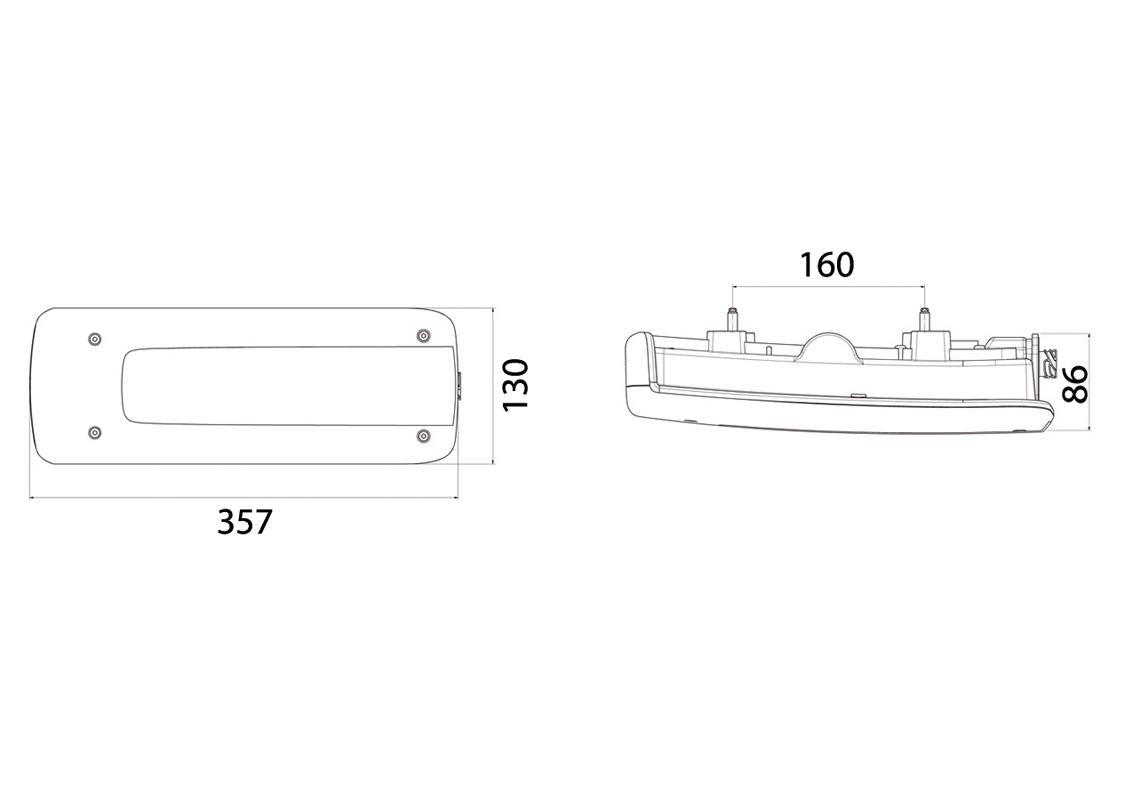

| Fixation Bolt Distance | 160 mm |
| Length | 357 mm |
| Width | 130 mm |
| Depth | 86 mm |
| Main Functions | Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector |
| EMC | E2 10R-026854 |
| ADR | ADR |
| ECE | E2 12144, ECE |
| Industry | Trucks |
| Applications | |
| Constructor | VOLVO |
| Model | FM |
| Reference | 21735299 |
| Start date | 09/2013 |
| End date | – |
| Constructor | VOLVO |
| Model | FM |
| Reference | 84441327 |
| Start date | 09/2013 |
| End date | – |
| Constructor | VOLVO |
| Model | FM |
| Reference | 23522305 |
| Start date | – |
| End date | – |
| Constructor | VOLVO |
| Model | FM |
| Reference | 23690765 |
| Start date | – |
| End date | – |
| Constructor | RENAULT TRUCKS |
| Model | D ➝ 18T |
| Reference | 7423530442 |
| Start date | 09/2020 |
| End date | – |
