[VIGNAL] SL / SLA LED - LED Compact Work Light 1000 Lumen

VIGNALSKU: D14850
Price:
€35,90
Stock:
Only 10 units left

Description

Brand ABL
Product Type Work light
Voltage 12/24 V
Source LED
Amperage 0.58 AMP at 24V
Consumption 14W
Operational Lumen 1000 Lumen
Color Temperature 6000 K for crystal version
Light Pattern Flood
Color Crystal
Connector DT 2-pin
Mounting Pedestal
Lens Material Polycarbonate plastic cover
Housing Material Bi-material (plastic body and aluminum dissipator)
Shape Square

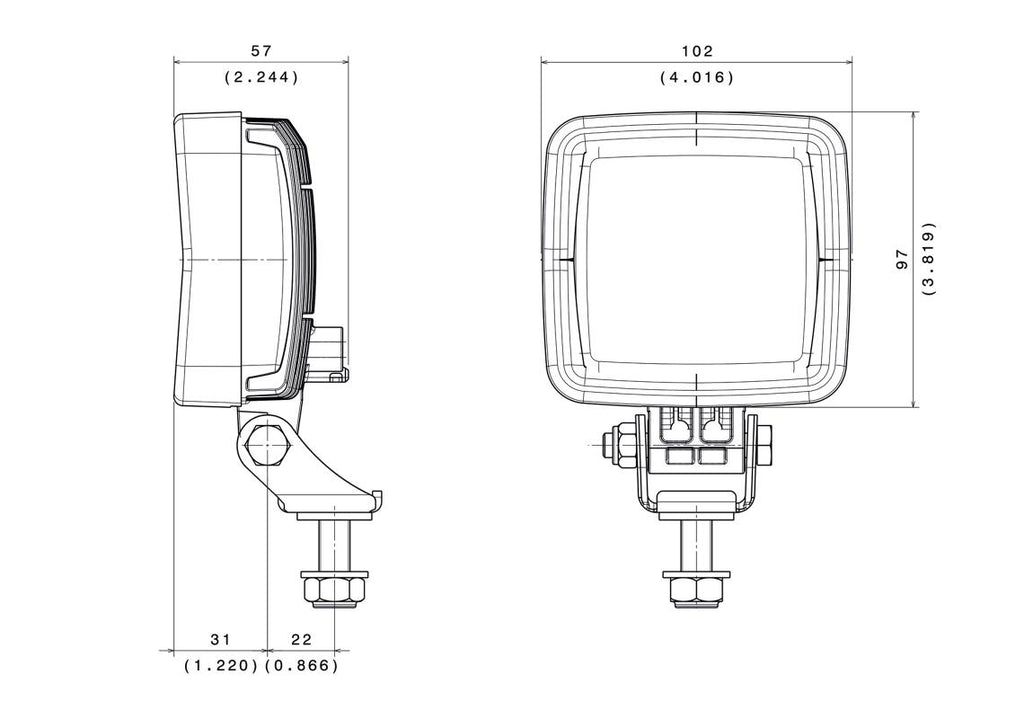

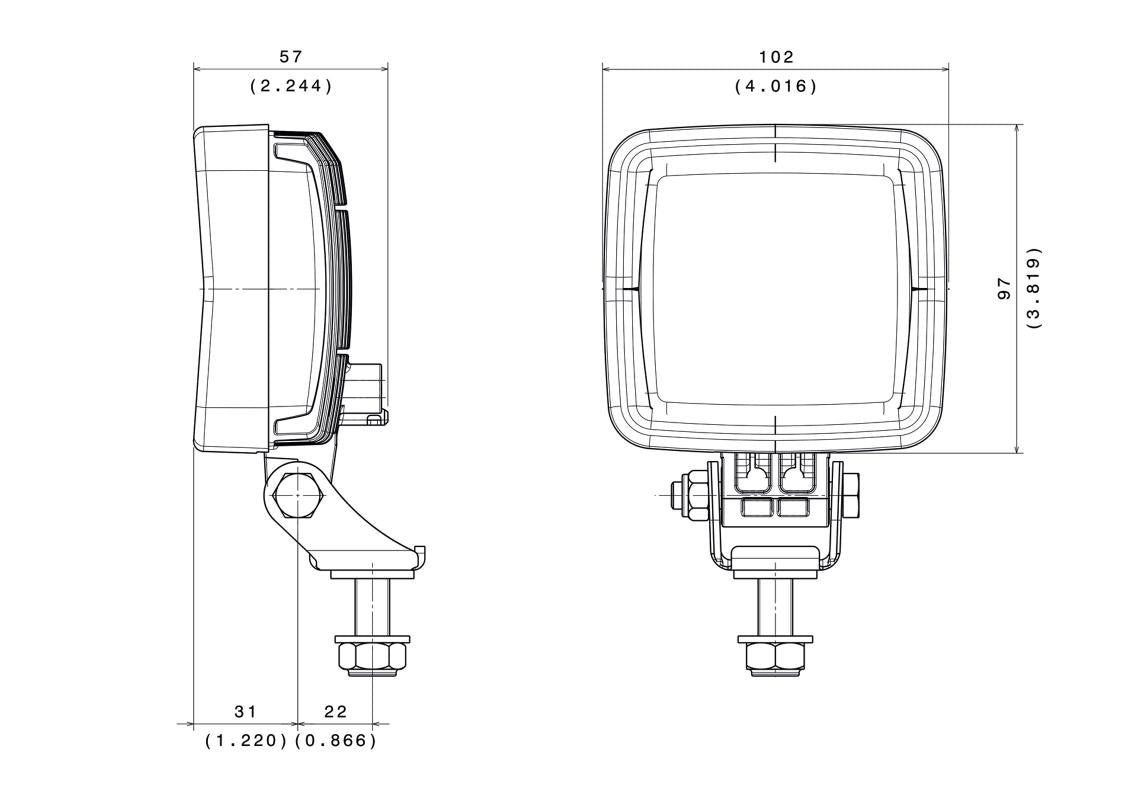

Width 102 mm
Depth 63 mm
Height 97 mm
Weight 0.45 kg
IP Protection IP68 – IP69K
Polarity Protected against reverse voltage
Electronic Thermal Management Full output at +35°C ambient, 25% dimmed at +50°C ambient
Operational Temperatures -40°C to +85°C
Load Dump 36V CONTINUOUS / ISO7637-2 Pulse 5a
Salt Spray Test ISO 9227
Vibration Resistance 15 Grms, from 24Hz to 2000Hz
Shock Resistance 60G
Lifetime 30,000 operating hours
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5
Industry Agriculture, Construction, Handling and Forklifts, Priority vehicles, Trailers and Semi-trailers, Trucks, Vans and Chassis cab


Constructor Model Reference
CATERPILLAR TRACTOR 589-0459
VF VENIERI TRACTOR 10111110
WACKER WIEDEMAN TRACTOR 1000445225
