Description
The HD rear view kit can equip buses, trucks, vans and special vehicles such as construction vehicles, garbage trucks & sweepers.

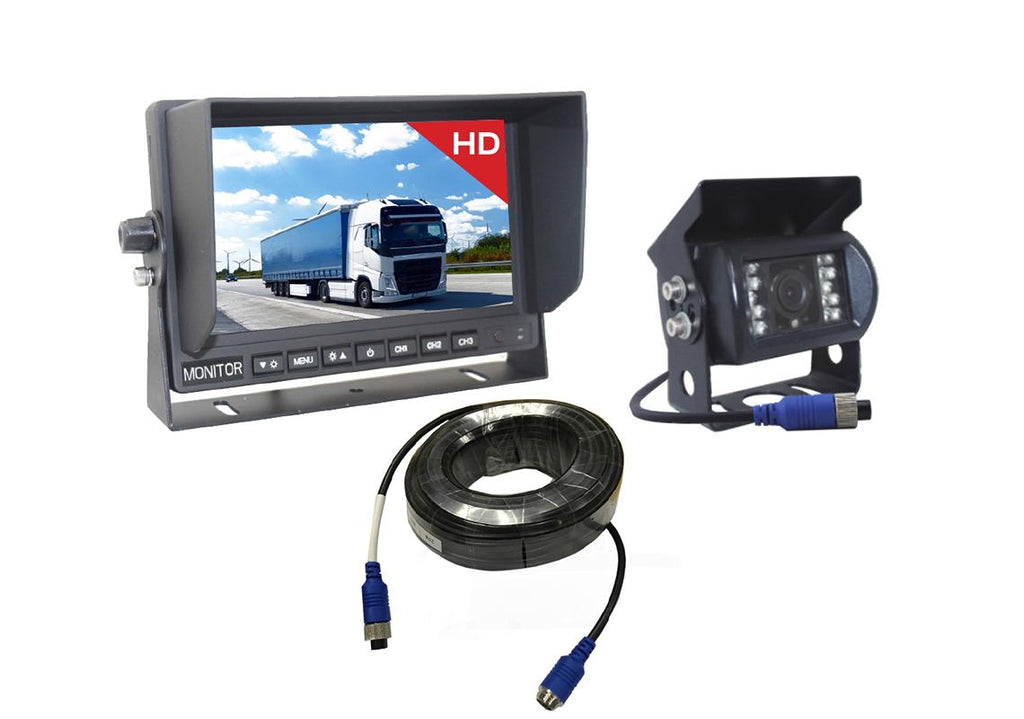

This camera kit is composed of :
- A high resolution rear camera
- A high definition screen (7 inches)
- An excellent resolution (1280x720 - 1 Million pixels), and offers a viewing angle of 150 ° with a minimum illumination of 0.1 lux. It is robust and waterproof IP68.
- A 20 meters cable
The camera is accompanied by a 7'' high definition digital screen (720P) offering an excellent resolution (1024*R.G.B* 600).
The screen has a removable sun visor as well as a speaker, and is automatically triggered when the reverse gear is activated.
| Product Type | Complete kit |
| Voltage | 12/24 V |
| Warranty | 2 Years |
| Screen display | Mono |
| Cable Length | 20 m |
| Screen Size | 7" |
| Composition | 1 color screen MONO AHD 7" + 1 alu camera HD 720P + 1 cable 20 m |
| Resolution | 1024 × 3 (RGB) × 600 |
| Camera Dimensions | 75 mm (L) × 73 mm (W) × 55 mm (D) |
| Max Cameras | 3 cameras max |
| Vision Angle | 100° |
| Audio | Built in Speaker |
| Night/Day sensor | Yes |
| Infrared LED Number | 18 LEDs |
| Sunshade | Yes |
| Video Standard | PAL / NTSC / AUTO |
| IP protection | IP69K (camera) |
| Operation Temperatures | -20°C to +70°C |
| Vibration Resistance | 4G |
| Industry | Agriculture, Buses and Coaches, Construction, Trailers and Semi-trailers, Trucks, Vans and Chassis cab |
