Description
The Nuuk D-Line 30” LED bar has an extended beam pattern with a range of more than 556 meters and 15500 actual lumens in Xperience mode. It’s incredibly lightweight and slim, only 3,3 cm deep and 4,5 cm high, including the bracket. D-Line is an ideal addition to your built-in high beam. The standard high beam is usually quite wide. With the D-Line, you’ll get more output in front for more range and better visibility.

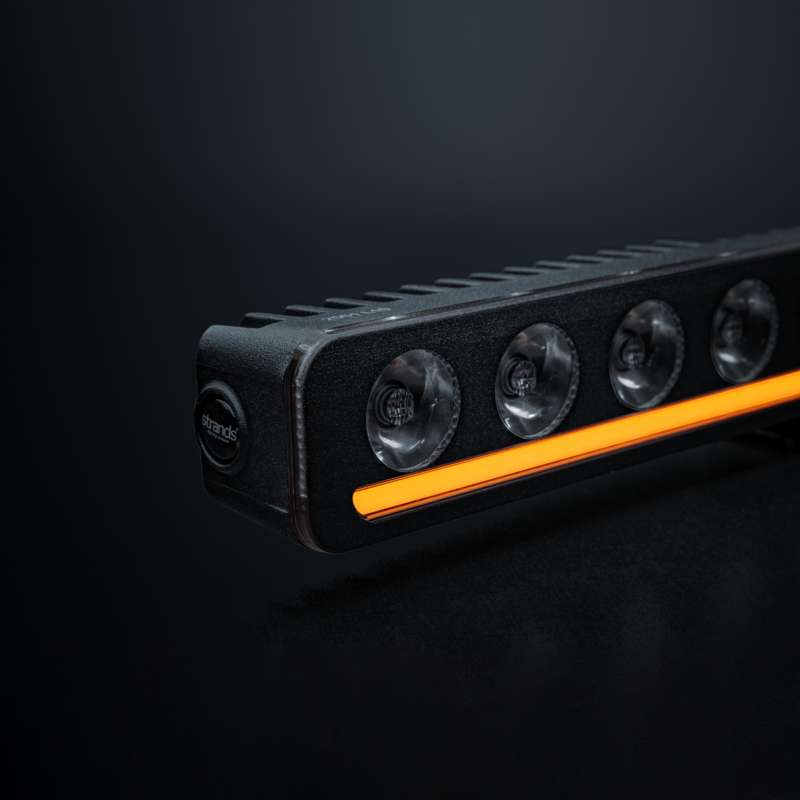

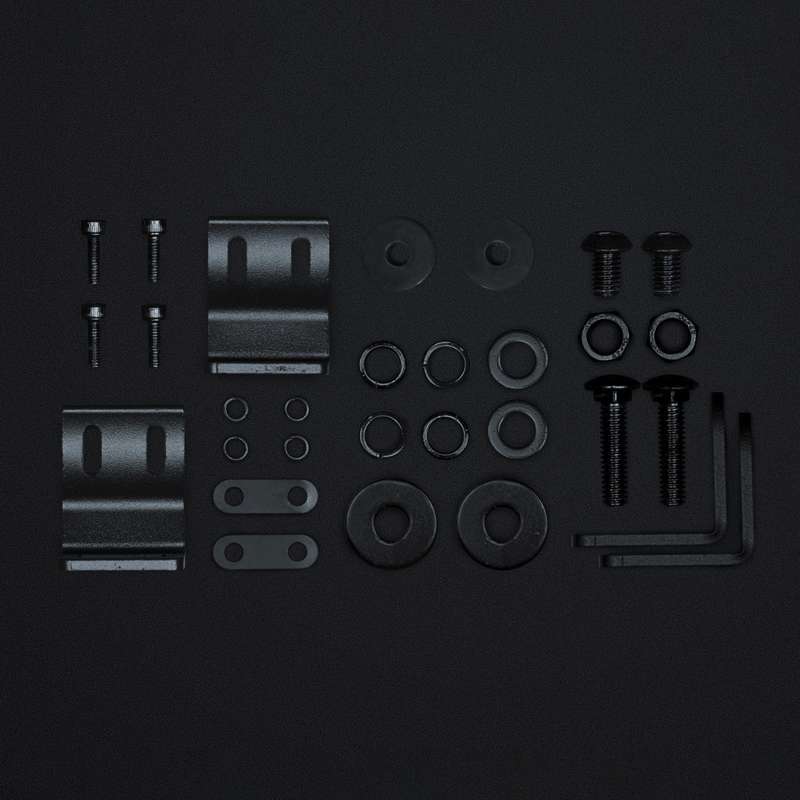

The result is a more comfortable, safer, and enjoyable driving experience. The E-mode is E-approved R148/149 with reference number 20, which many European countries require. Many drivers prefer this mode when driving in rainy or snowy weather, as it reduces the glare from water particles. With Xperience mode, you’ll discover a powerful output with maximum range and brightness. This LED bar has a slim black housing and lens, underlined by the glow of the white and amber position light. Nuuk D-Line is easy to use, lightweight, has a built-in relay, and includes everything you need for installation.
| Technical Specifications | |
|---|---|
| Unit | pcs |
| Voltage | 9–36V DC |
| Theoretical effect | 165W |
| Consumption | 165.0W |
| Functions | Highbeam, white and amber position light |
| Consumption specific function | Xperience mode: 165W / E-mode: 34W / White Pos: 13.8W / Amber Pos: 14W |
| Theoretical lumen | 15000lm |
| Actual lumen | E-mode: 3500lm / Xperience mode: 15500lm |

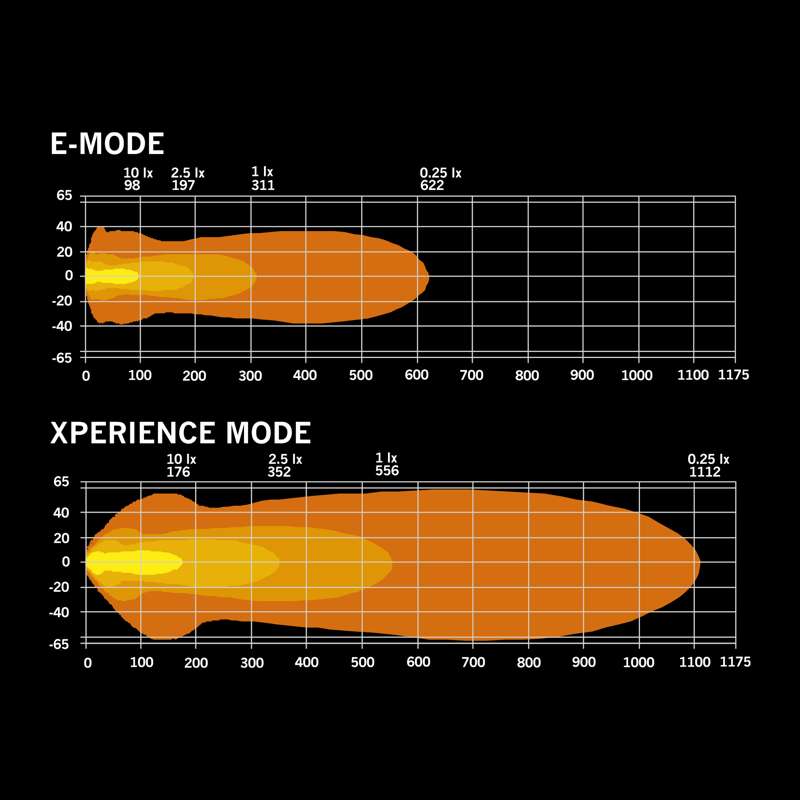

| 1 lux@ | E-mode: 311m / Xperience mode: 556m |
| Color temperature | 5000K |
| Beam pattern | Extended beam |
| Beam angle | 31.1° |

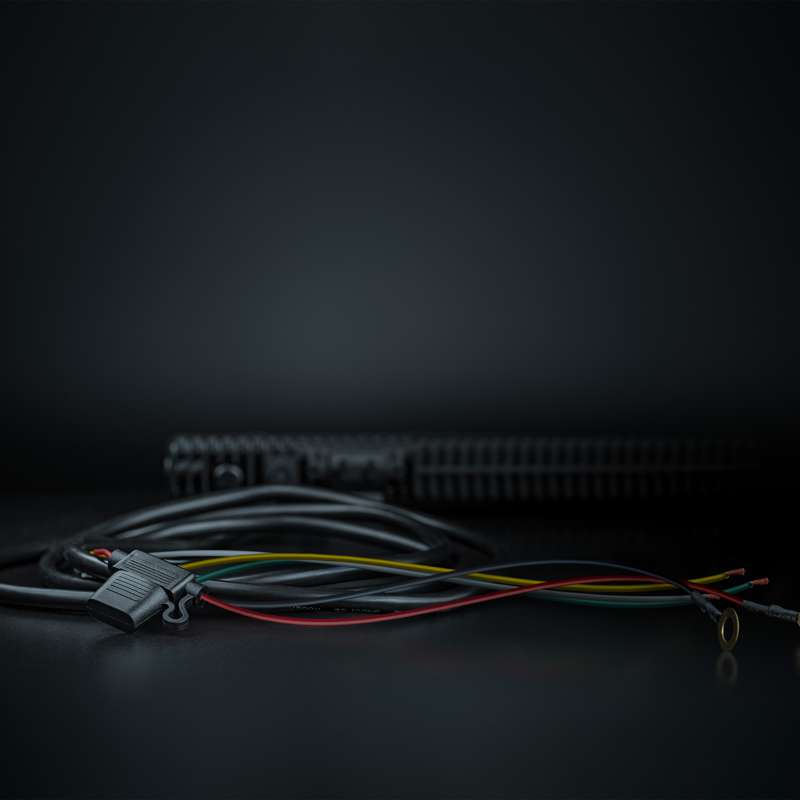

| Connection | Cable |
| Cable length | 2500mm |
| Color housing | Black |
| Color lens | Black |

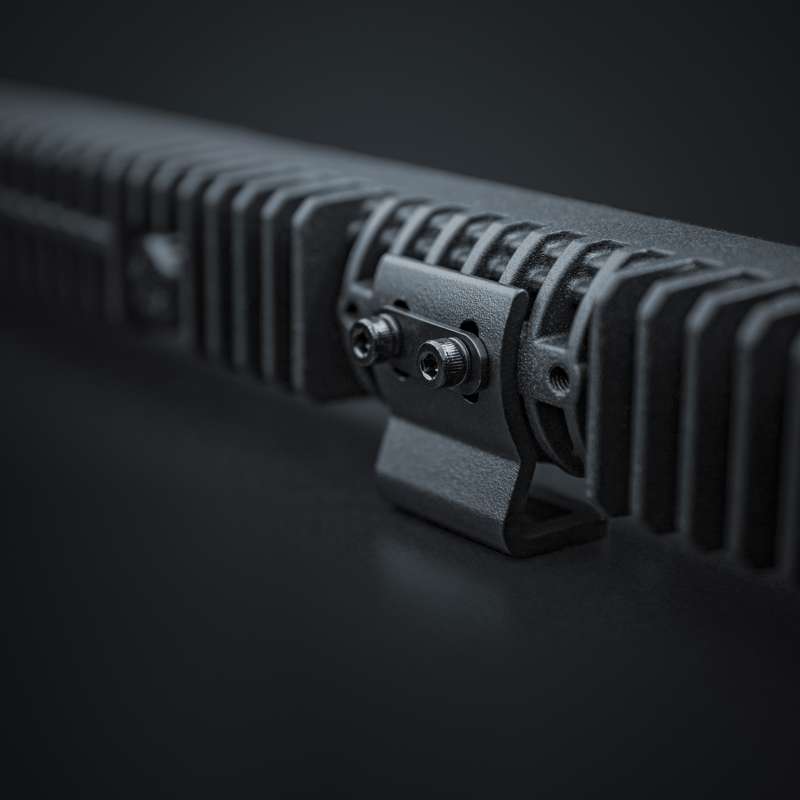

| Material bracket | Stainless steel |
| Material housing/chassi | Aluminium |
| Material lens | Polycarbonate |

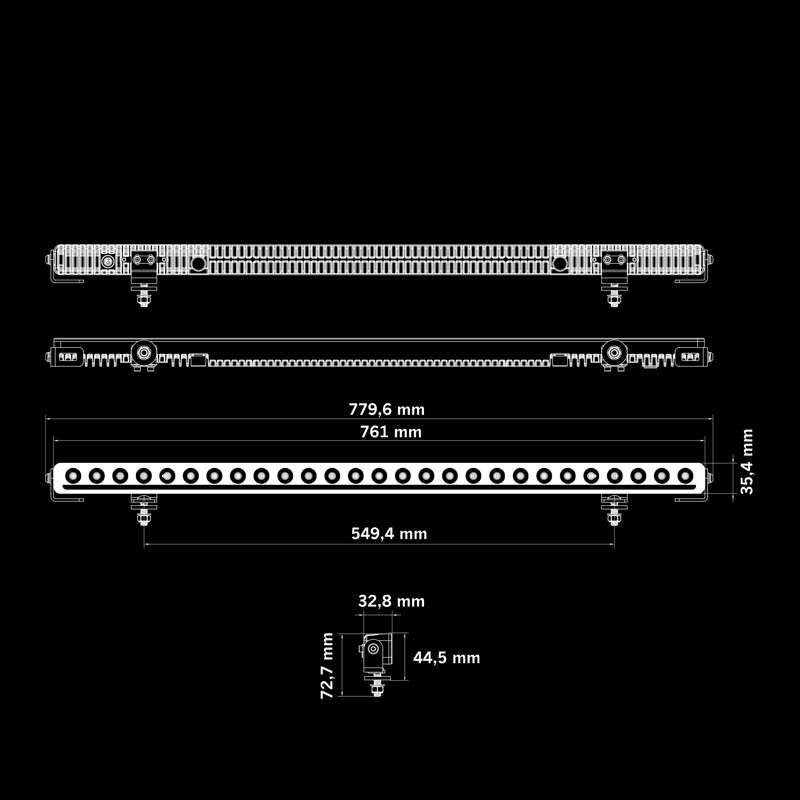

| Length | 761mm |
| Depth | 32.8mm |
| Height | 35.4mm |
| Height including bracket | 44.5mm |
| Weight | 1.8kg |
| IP-class | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |
| E-approved | Yes |
| According to regulation | ECE R148, R149 |
| Reference number | 20 |
| EMC | ECE R10 |
