Description

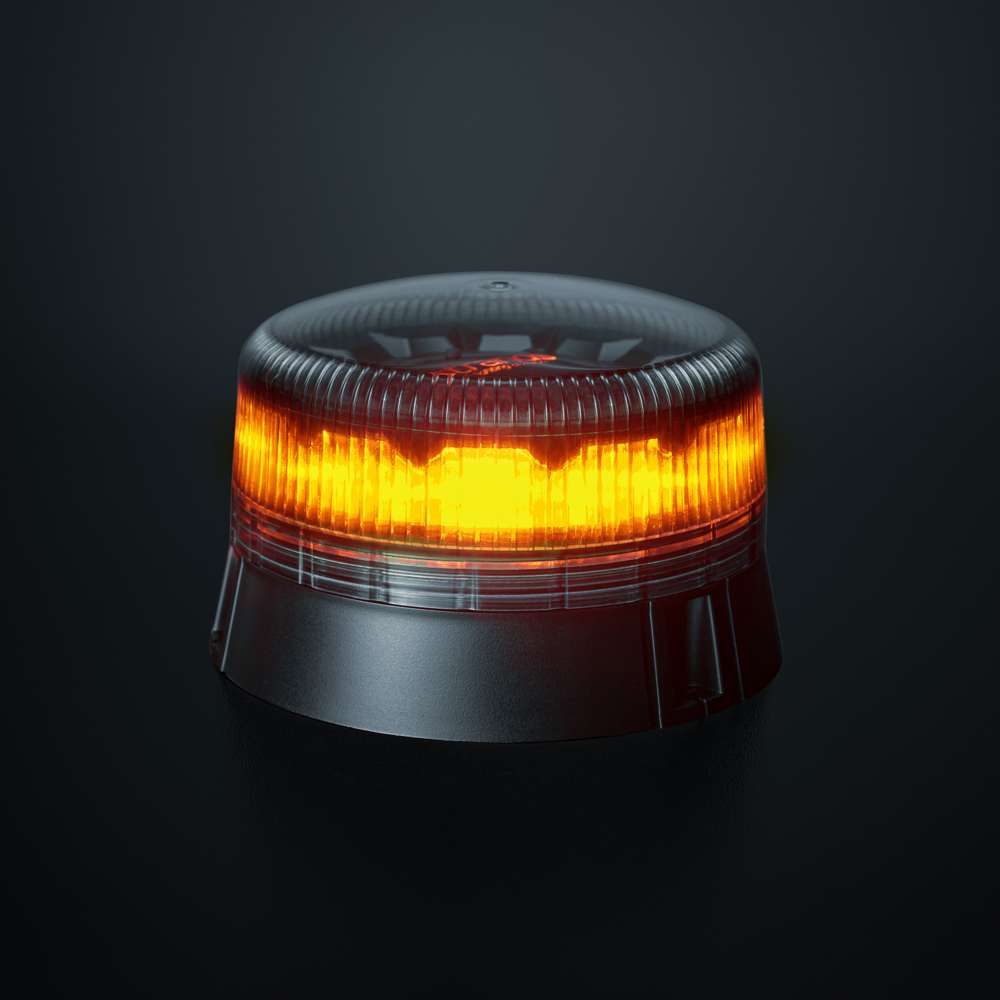

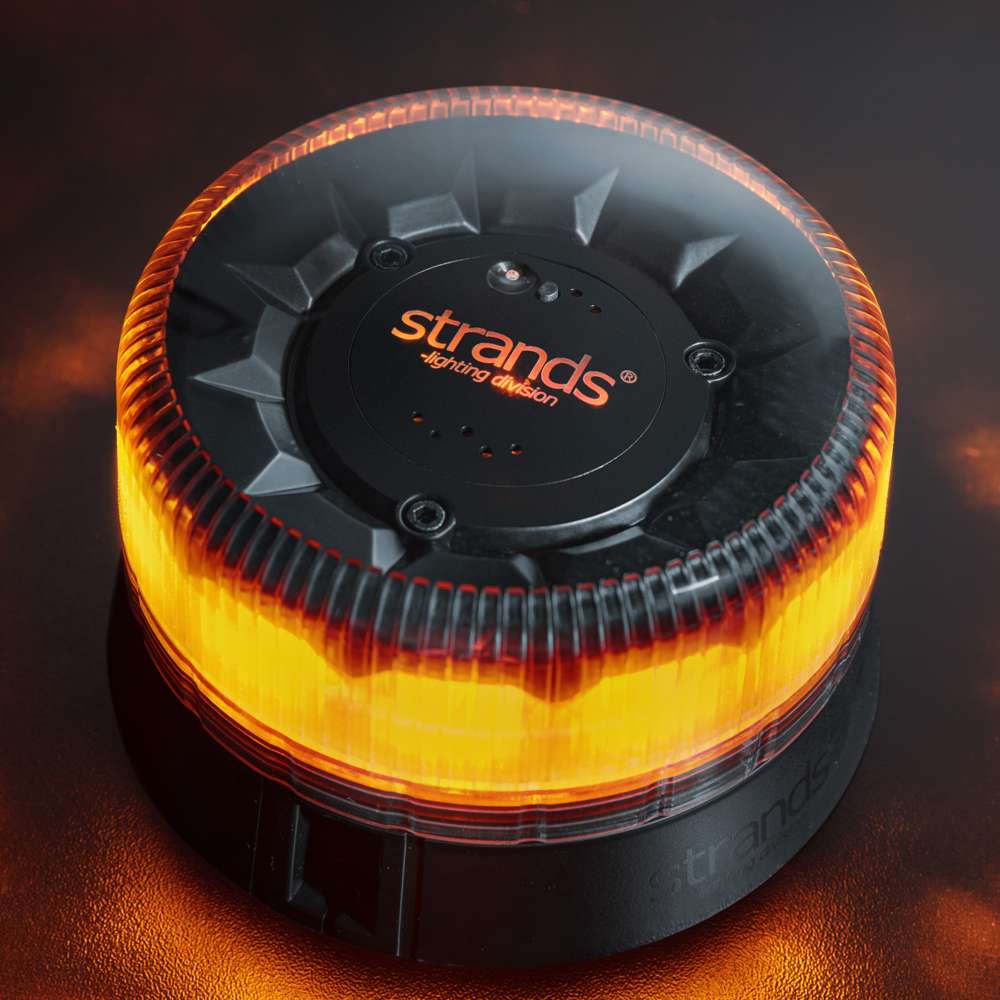

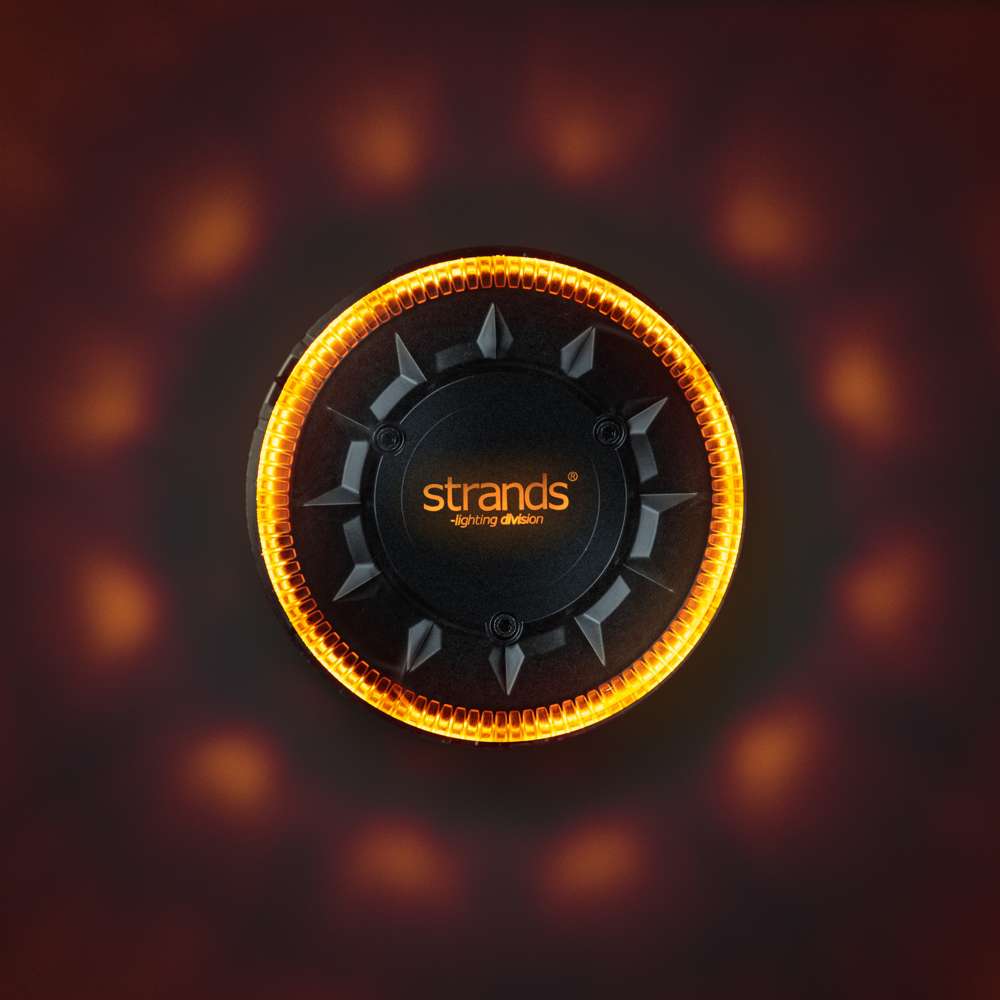

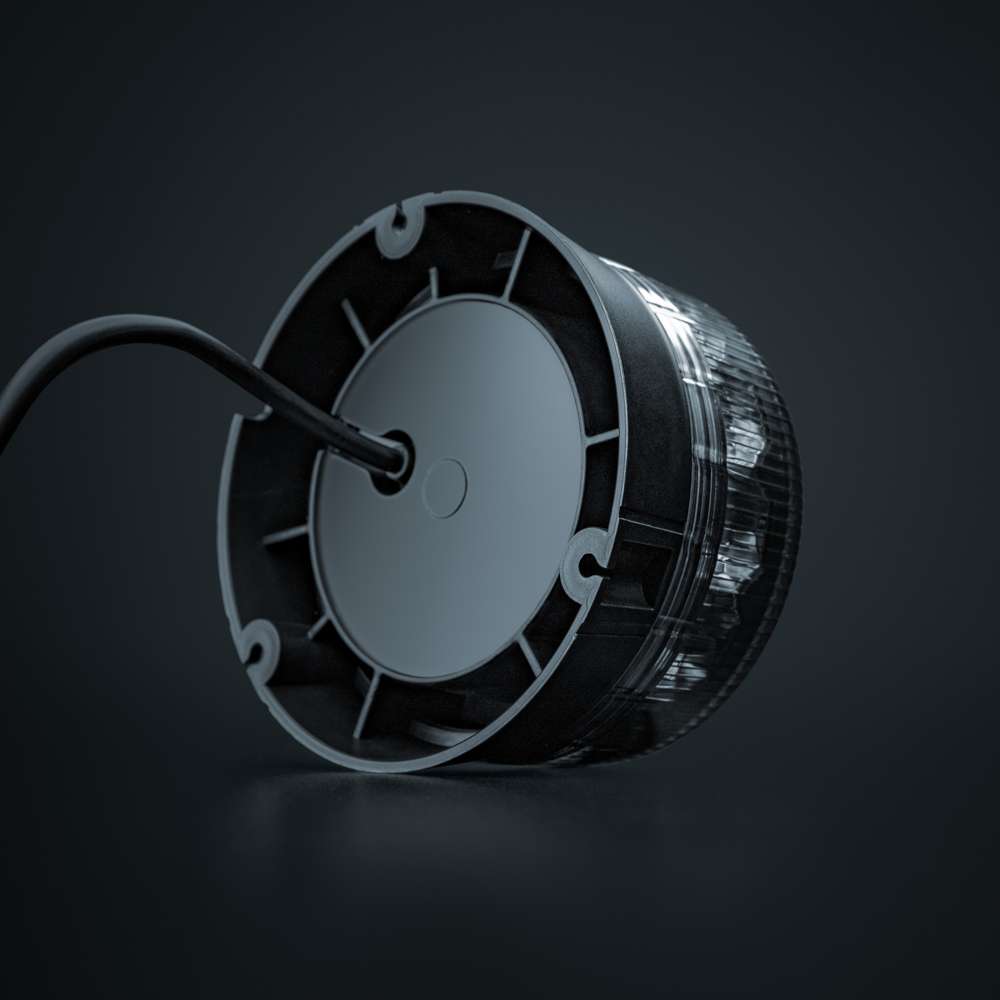

The Black Raven Pharos is a rotating warning light designed for trucks and heavy vehicles, offering all the functions you need to stay safe on the job. It’s E-approved, corrosion-resistant, easy to operate, and simple to install. Its sturdy build and durable materials ensure a long lifespan in any work environment. Equipped with amber LEDs and two lens options—dark and amber—it provides both style and high visibility.

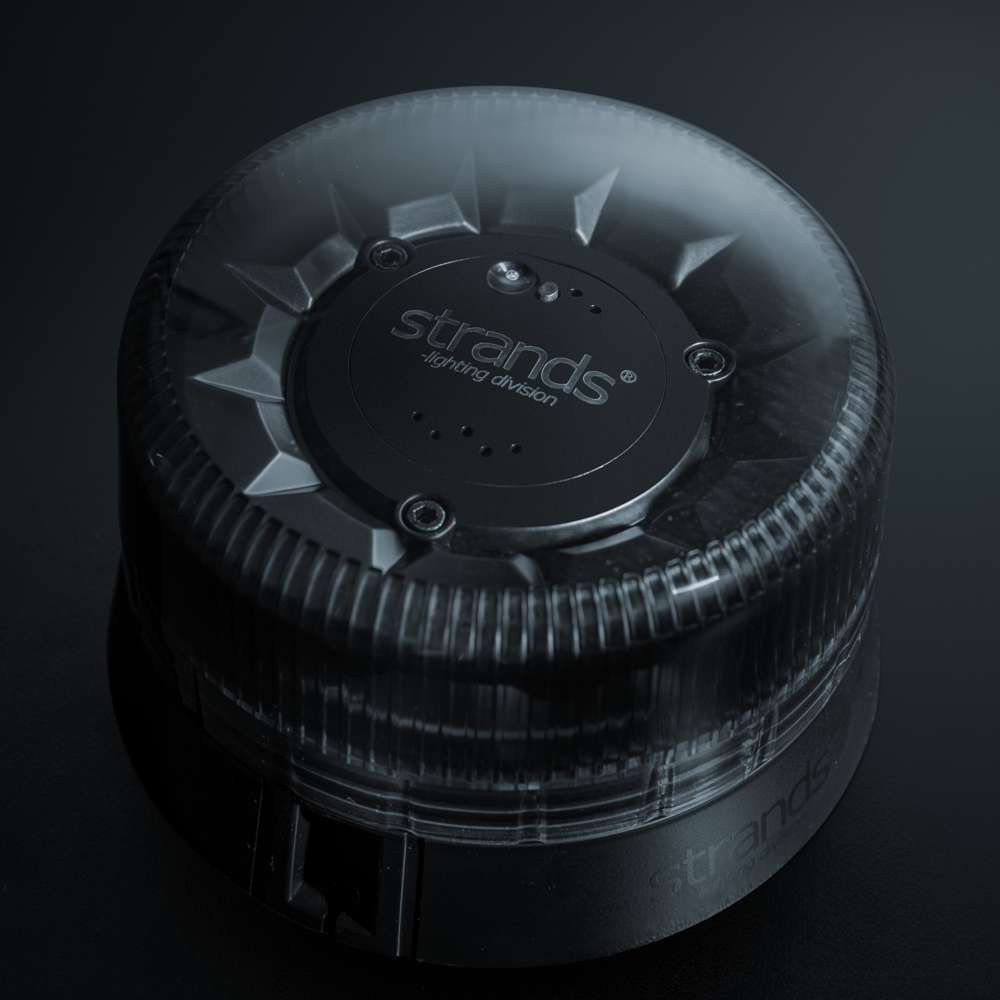

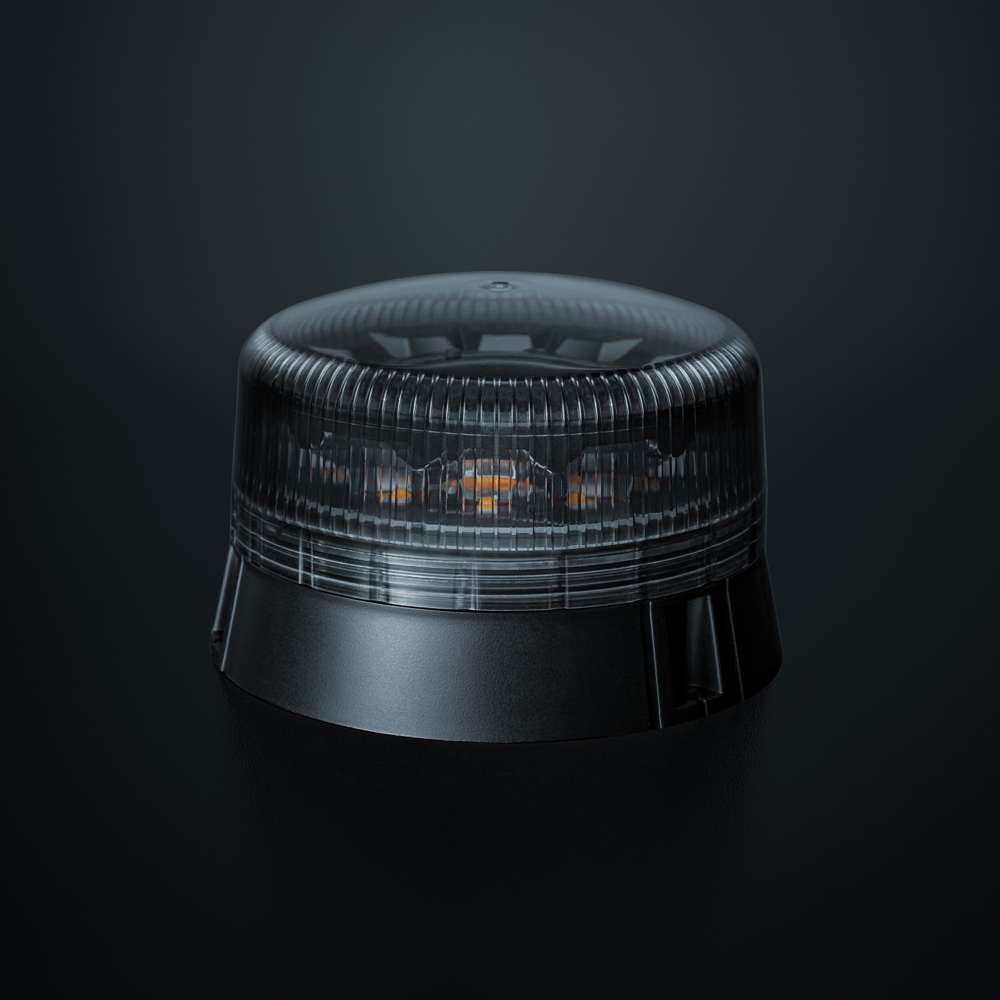

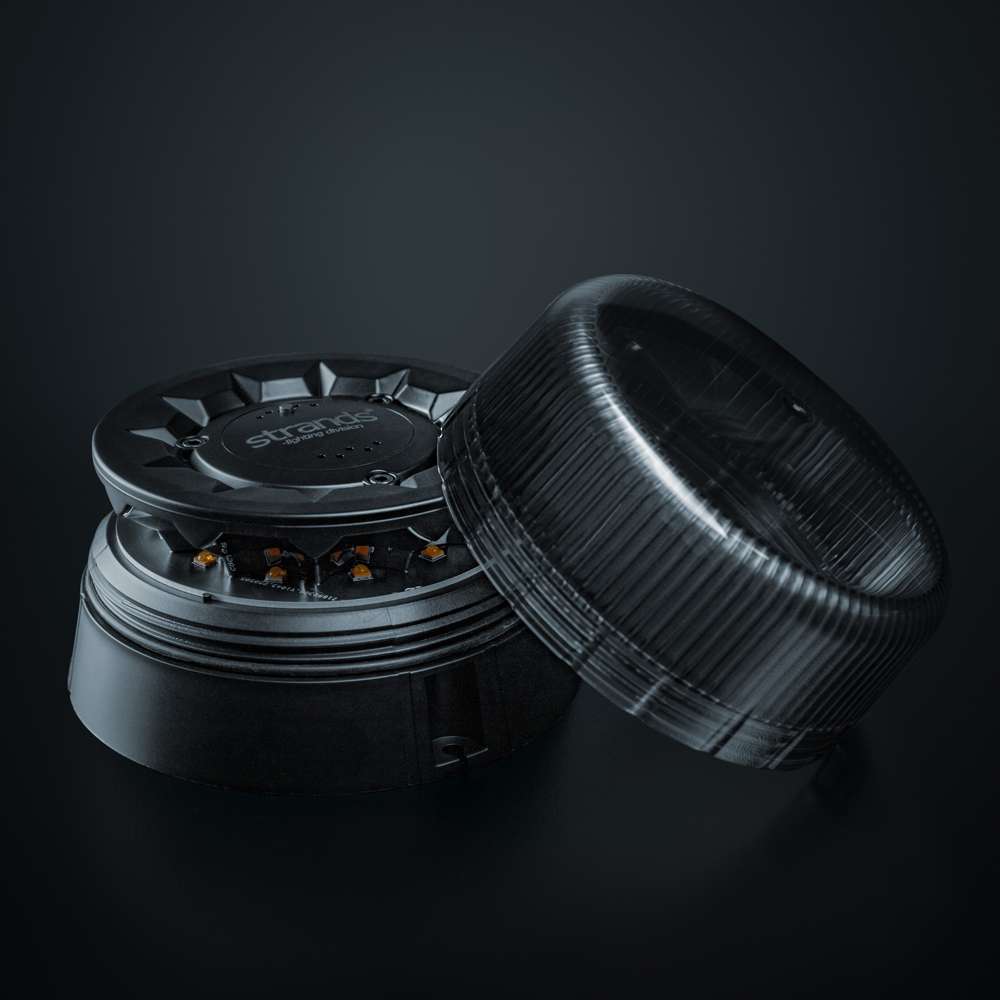

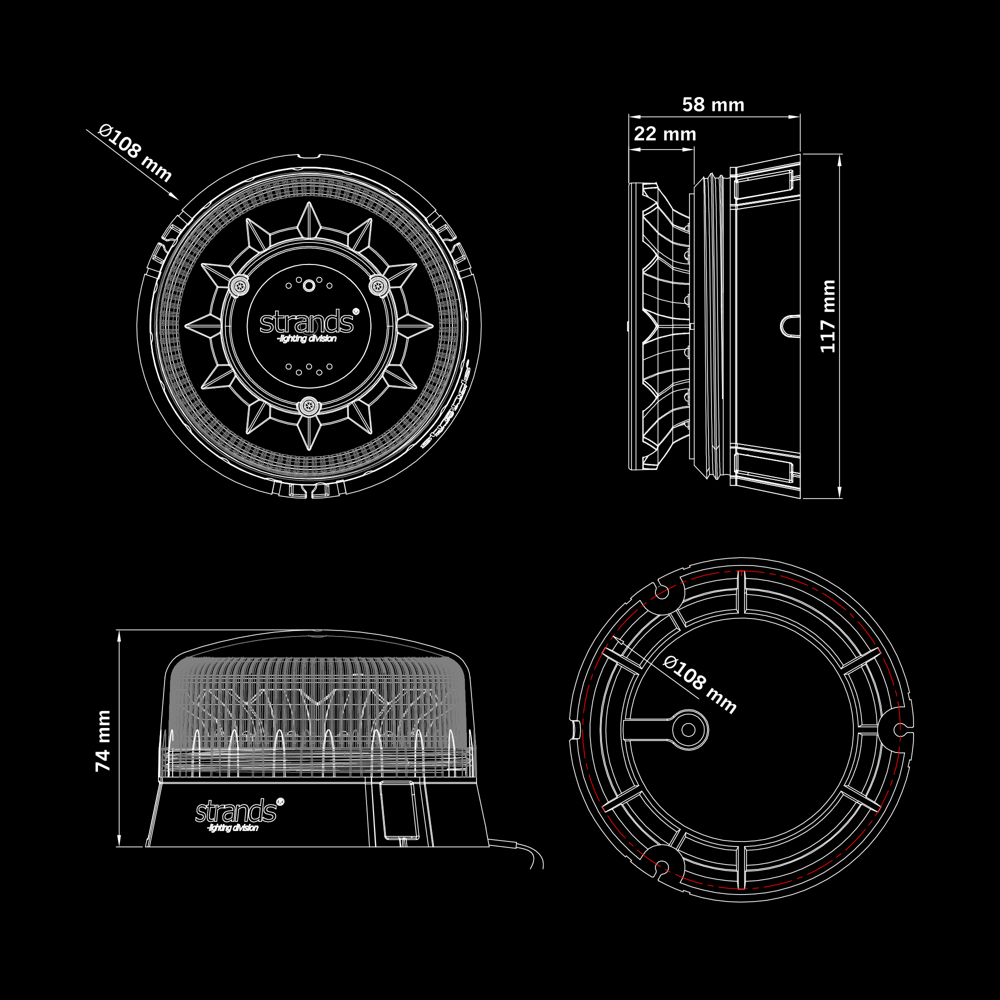

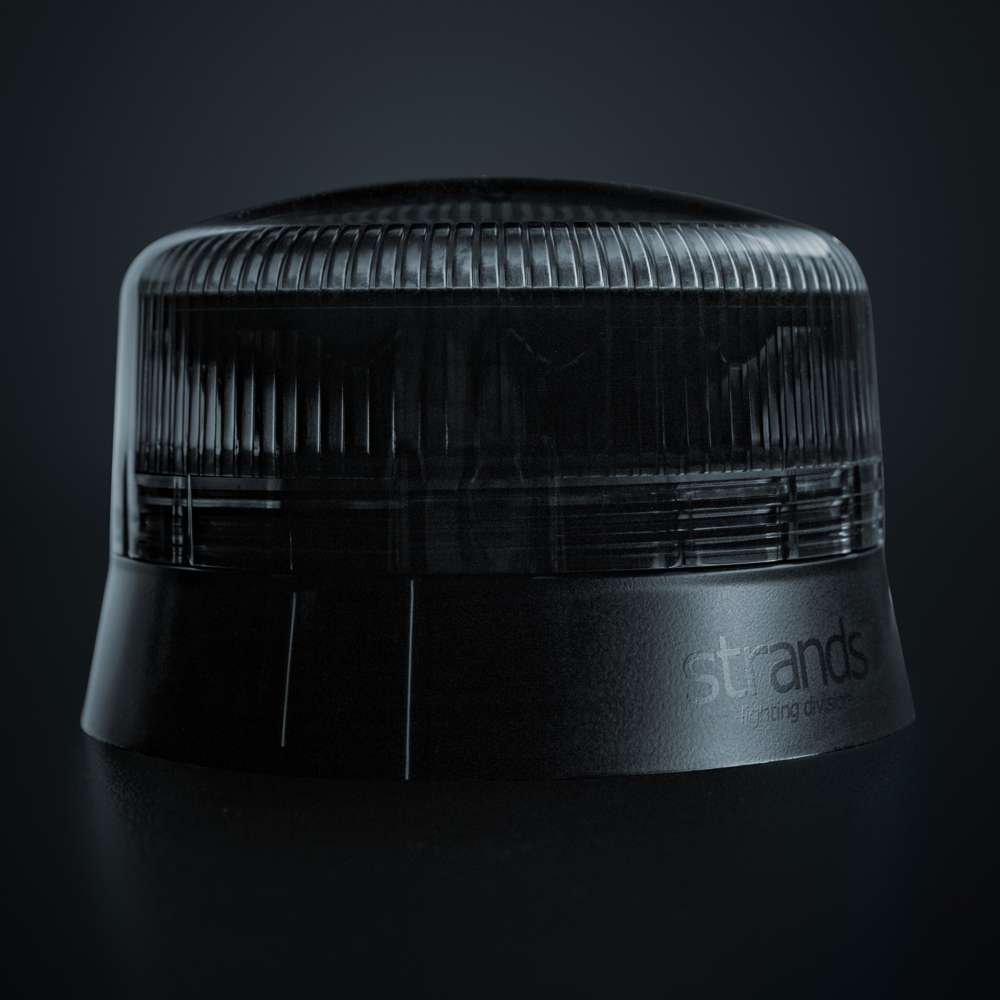

The dark lens is included, while the amber lens is sold separately (Part No. 905000A). The Black Raven Pharos features three warning light modes: rotating, single flash, and double flash. Switch modes by removing the lens and pressing the pattern-change button. This LED beacon is designed for surface mounting and is easy to install thanks to its 2.5-meter cable and 117 mm diameter with a 108 mm CC. It consumes only 10W and is backed by Strands’ 3-year warranty.
| Technical Specifications | |
|---|---|
| Unit | pcs |
| Voltage (DC) | 12–24V DC |
| Theoretical effect | 20W |
| Consumption | 10W |
| Functions | Amber warning light |
| Patterns | 3 |
| Connection | Cable |
| Cable length | 2500mm |
| Color housing | Dark |
| Color lens | Dark |
| Color LED´s | Amber |
| Material housing/chassis | ABS |
| Material lens | Polycarbonate |
| Depth | 0.5mm |
| Height | 74mm |
| Weight | 0.351kg |
| Diameter | 117mm |
| CC | 108mm |
| IP-class | IP66 |
| Operating temperature | -20°C to +50°C |
| E-approved | Yes |
| ECE approval | R10.06, R65 |
