Description

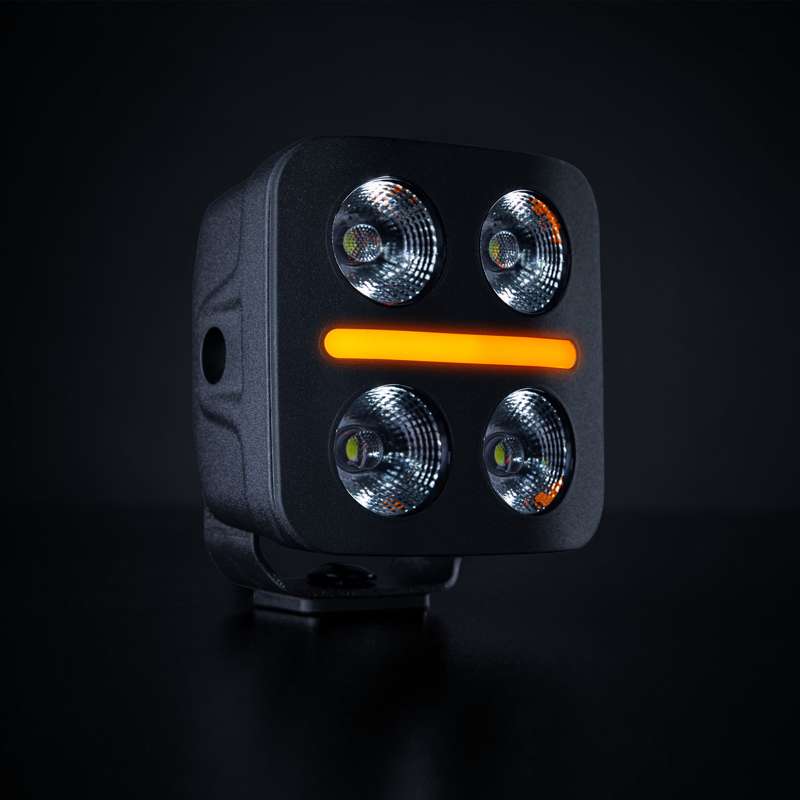

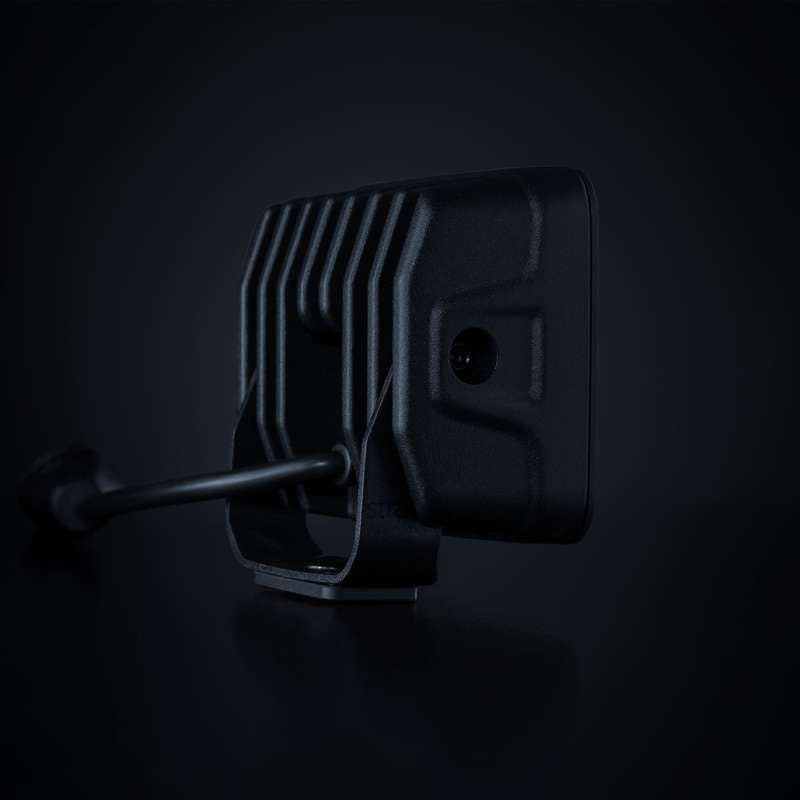

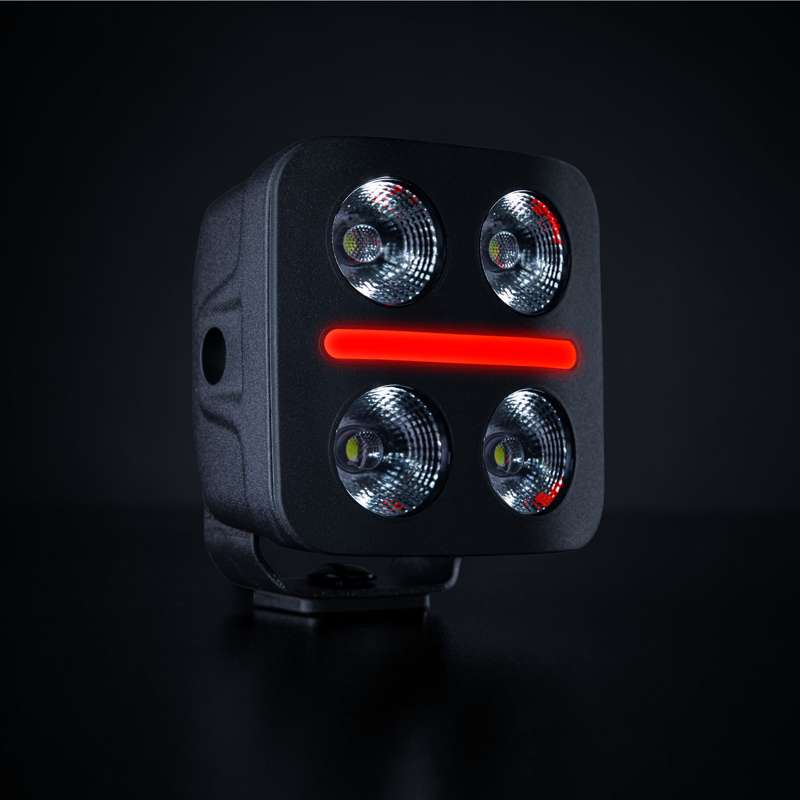

The Nuuk D-Line Qube 3″ work light is made for professional use, with 2920 actual lumens, 5700 K color temperature, and a 59 m range. Built to endure, its high-quality materials and IP68/69K rating make it ready for demanding jobs in difficult environments. Its rounded shape keeps the water away from the lens to clear the light, and the amber and red position light adds an eye-catching style and glow. From the feel of the materials to the bright and wide beam, every detail of the Qube reflects hardcore quality built to last. Installation is quick and simple with a 180° adjustable bracket and a 150 mm cable with a DT-4 connector, giving you flexibility and control. Its compact size ensures a perfect fit anywhere and for any vehicle, such as on the steps of your truck.
| Technical Specifications | |
|---|---|
| Unit | pcs |
| Voltage | 10–32V DC |
| Consumption | 39.0W |

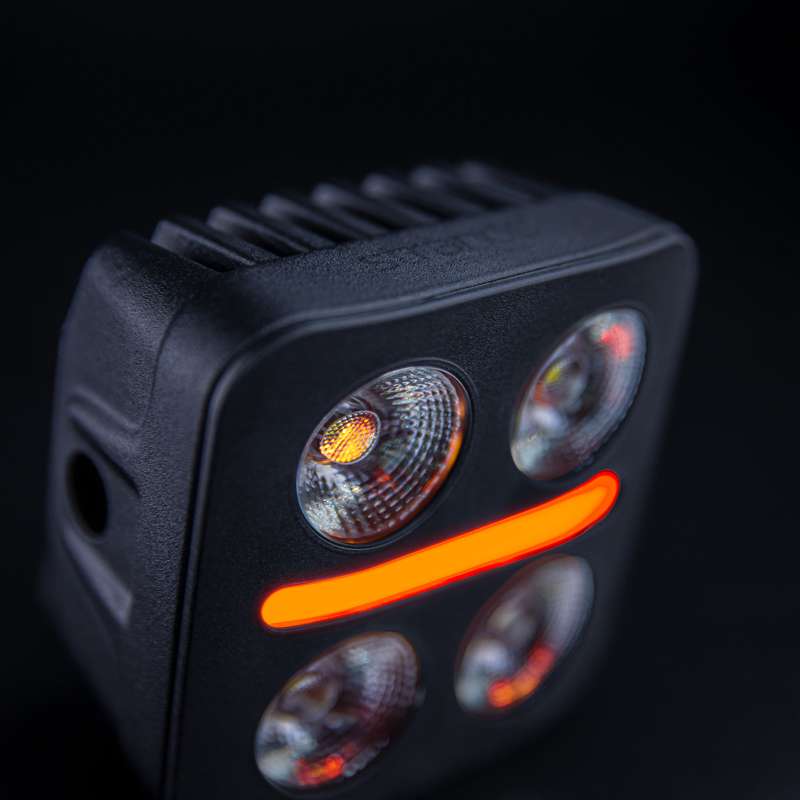

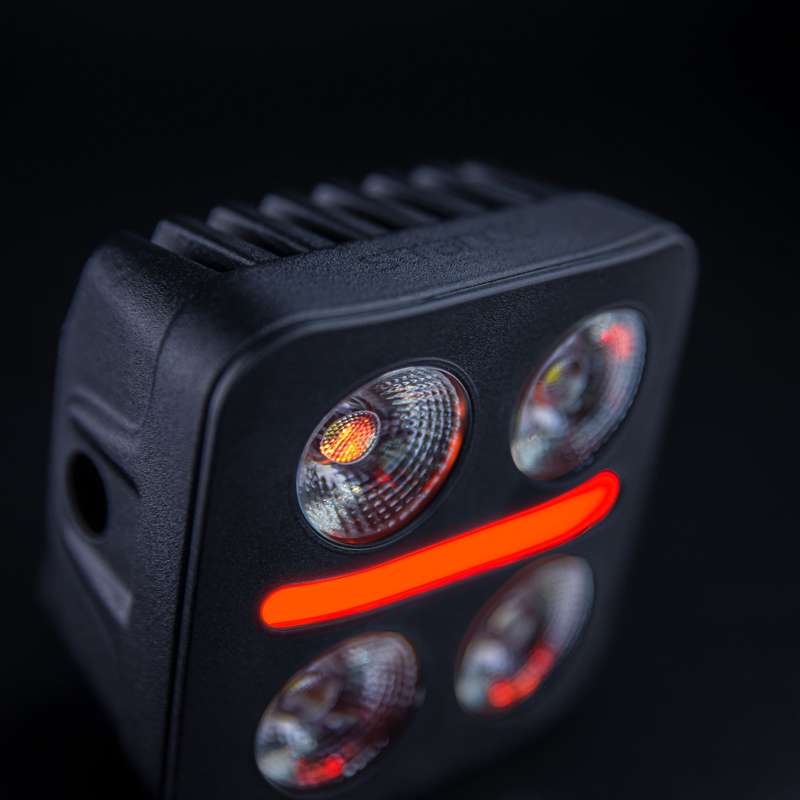

| Functions | Work light, Red and Amber position light |
| Consumption specific function | Red Position light: 2.9W, Amber position light: 4.1W |
| Actual lumen | 2920lm |

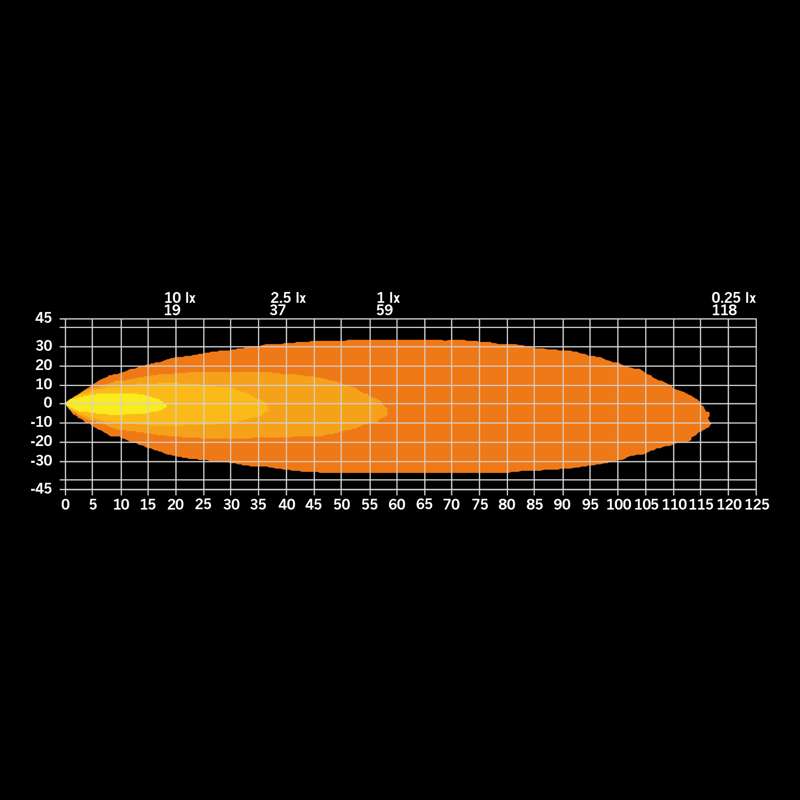

| 1 lux@ | 59m |
| Color temperature | 5700K |
| Beam pattern | Flood beam |
| Beam angle | 97.6° |

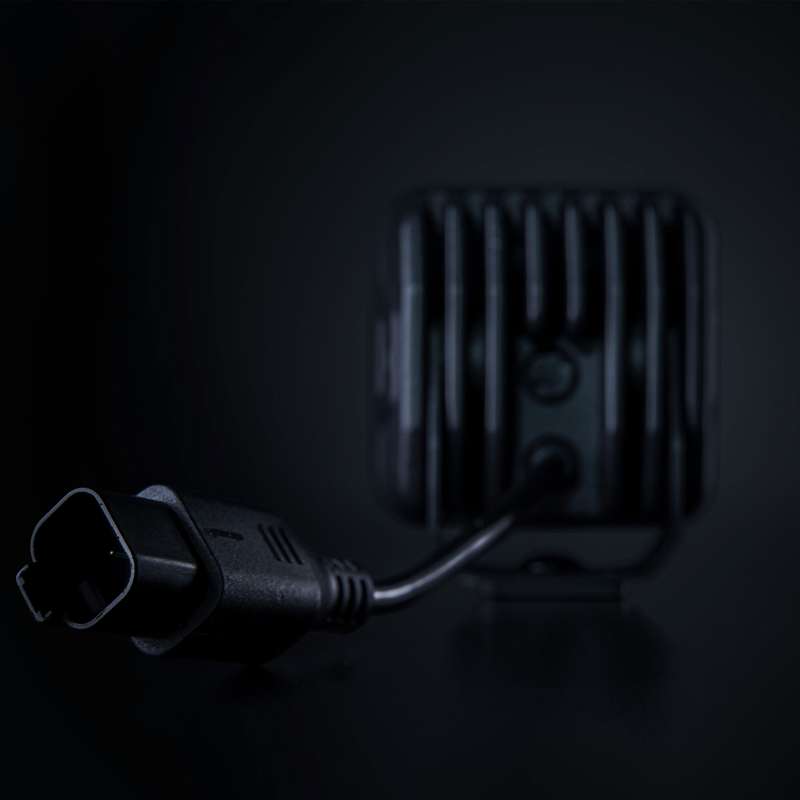

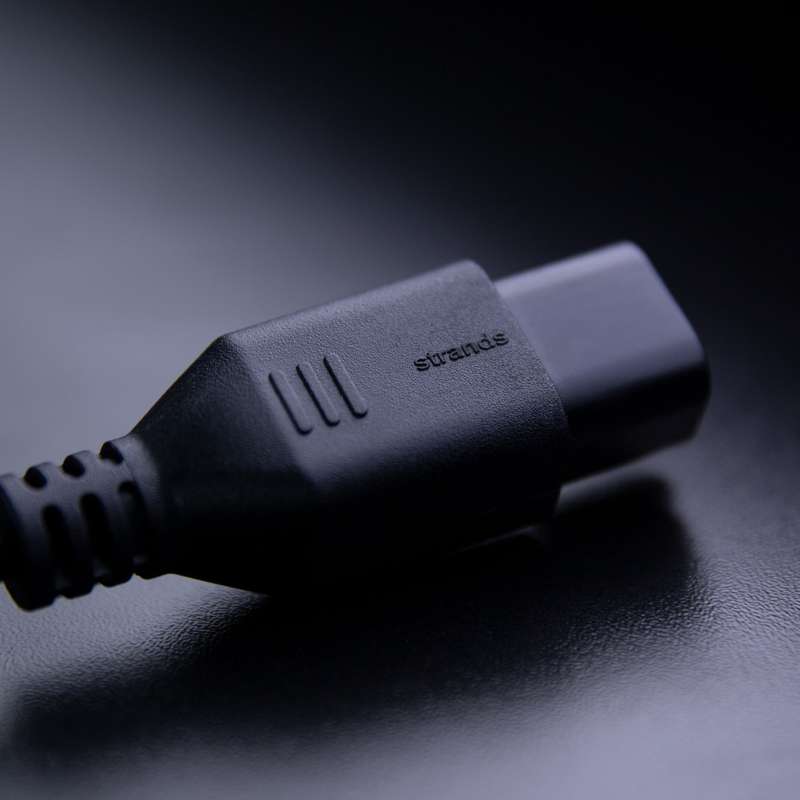

| Connection | DT:4PIN |
| Cable length | 150mm |
| Color lens | Clear |
| Color LED´s | White / Red / Amber |
| Material housing/chassi | Aluminium |
| Material lens | Polycarbonate |

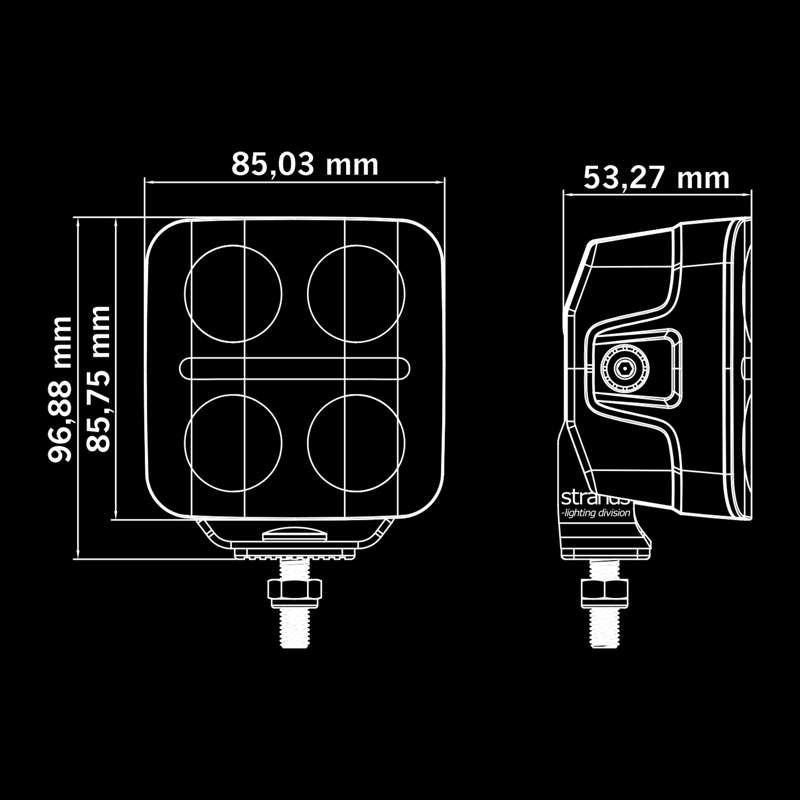

| Length | 85.03mm |
| Depth | 53.27mm |
| Height | 85.75mm |
| Height including bracket | 96.88mm |
| Weight | 0.5kg |
| IP-class | IP68 / IP69K |
| Operating temperature | -30°C to +65°C |
| E-approved | No |
| EMC | ECE R10 |
