Description

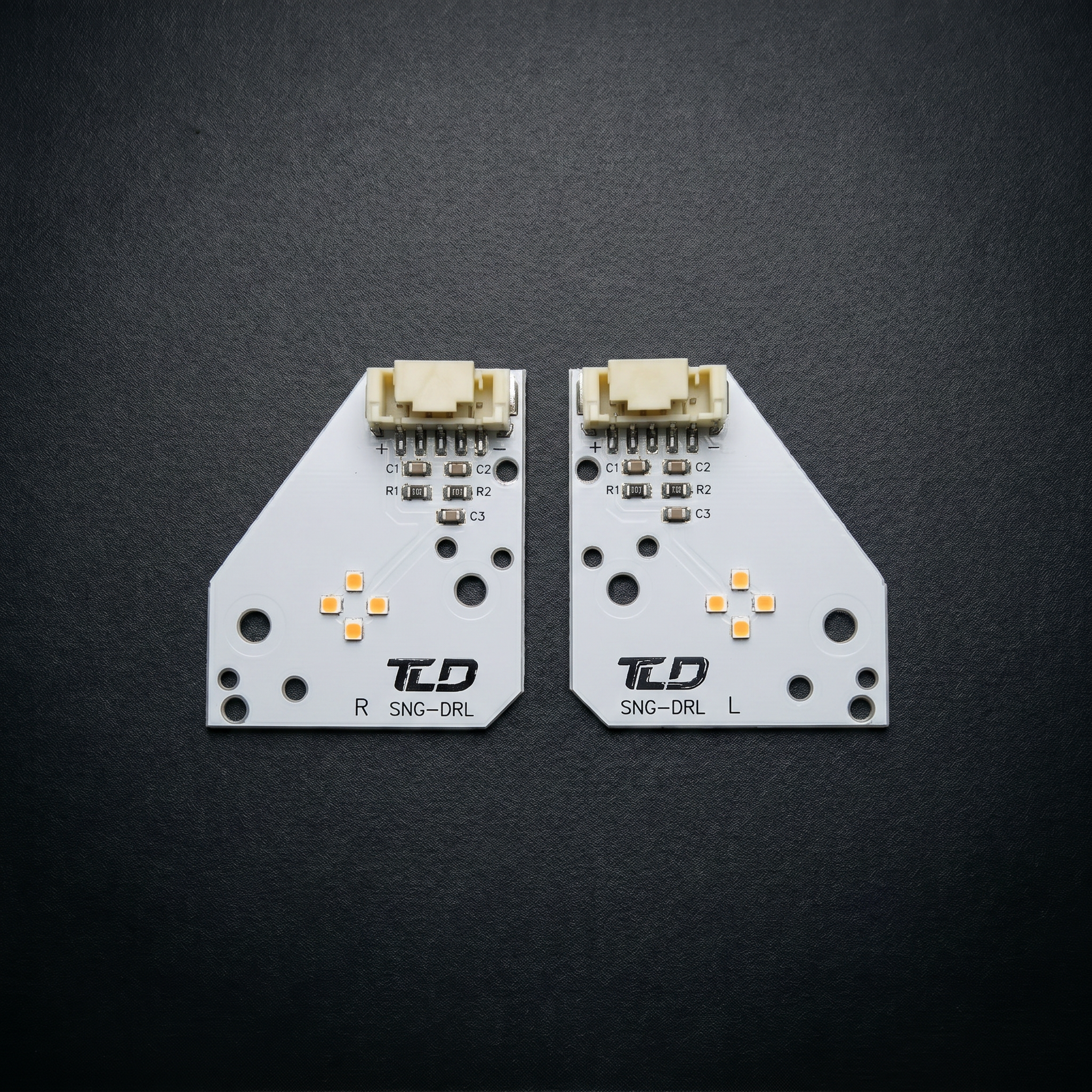

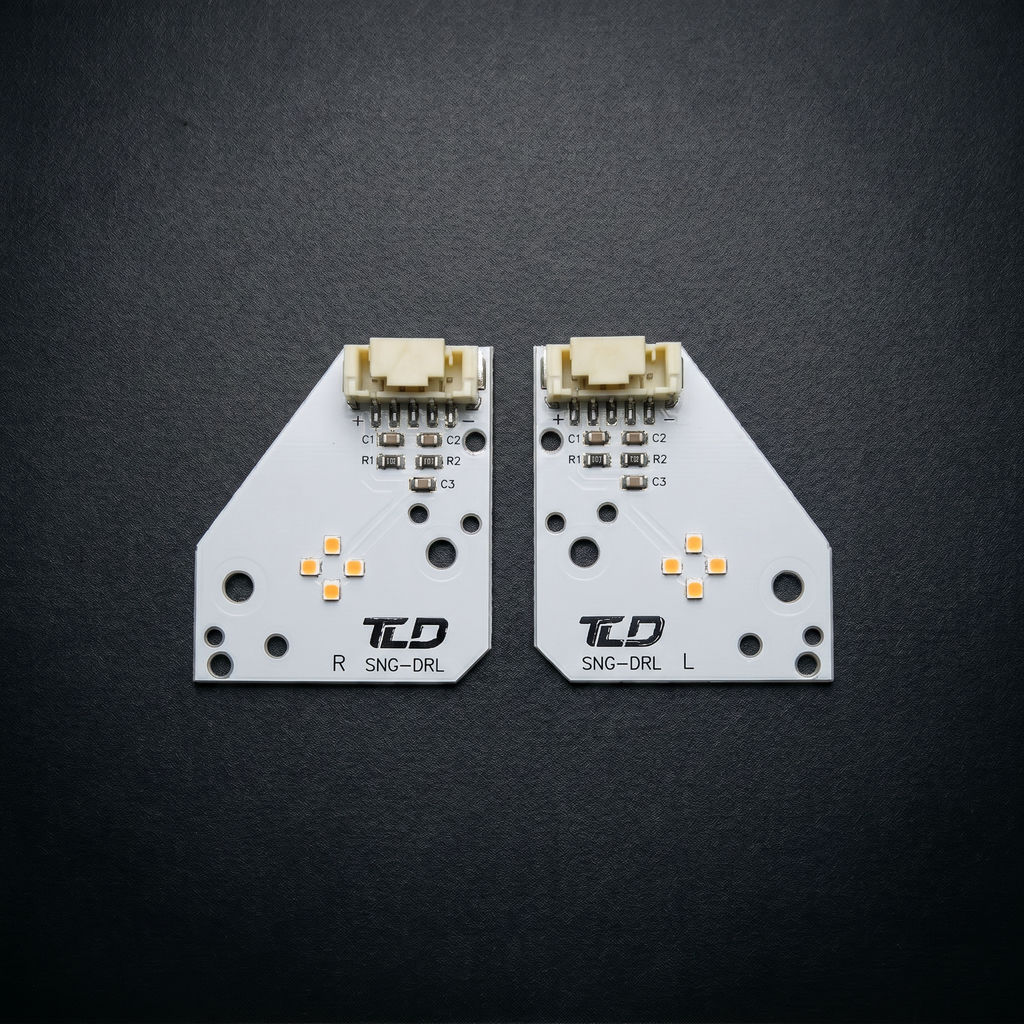

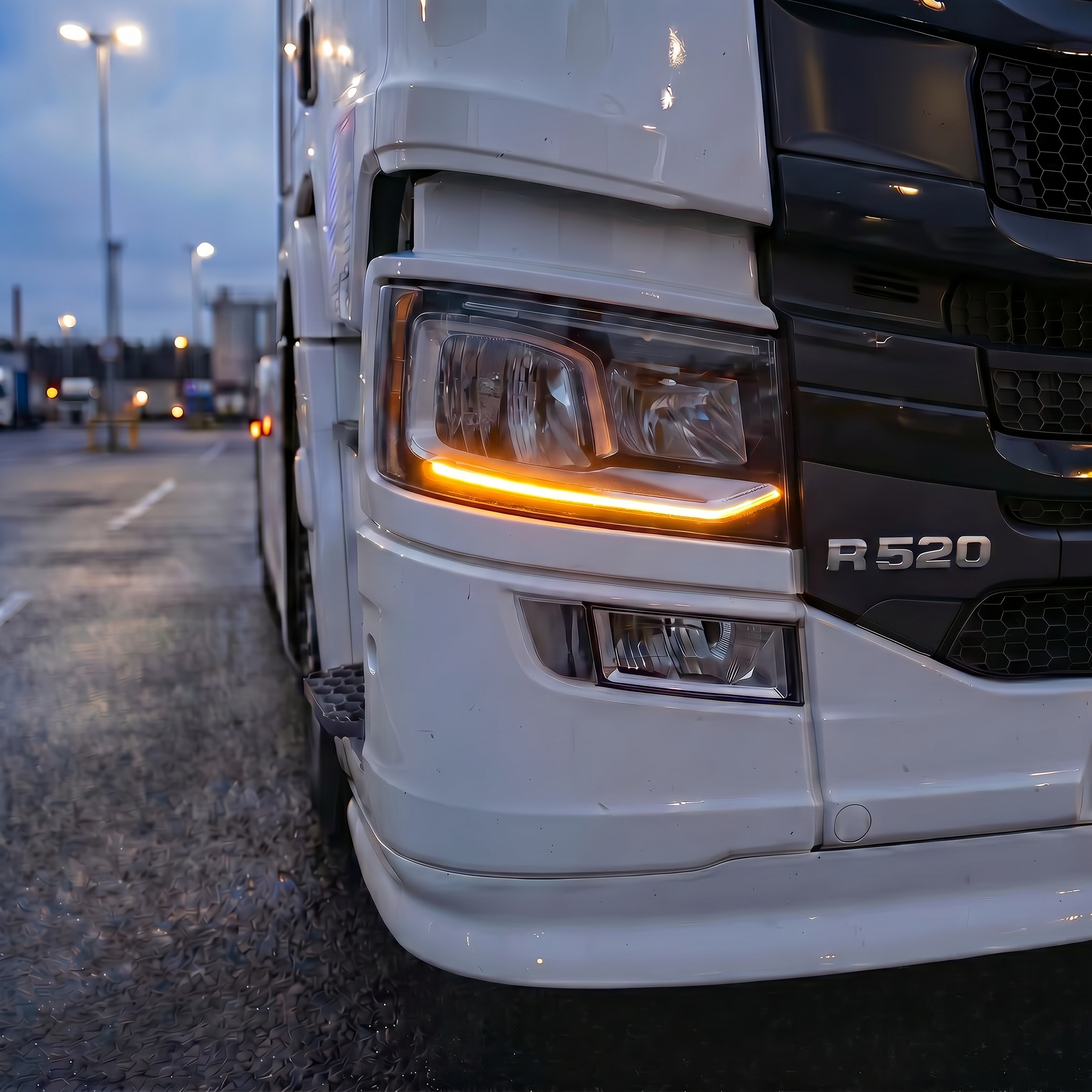

Swap your factory cold white DRL for a bold amber orange. High-power LEDs mounted on an aluminium board — same design as the original — for optimal cooling and long-lasting performance.
Kit Includes :
- 2x Amber LED boards (left + right)
- Thermal paste for improved heat transfer
Plug-and-play — uses the original connectors. No wiring required.
Installation :
The screws for each lamp are located inside the doors. Remove them and tilt the lamp out from the body. Remove the plastic frame screwed around the lamp.
The DRL boards sit on the bottom outer edge of the lamp. Loosen the lamp adjustment, remove the heatsink screws, and pull out the original board. Disconnect the connector by pressing the lock tab.
Remove the black fiber guide by loosening its two bolts. Note: Some models require an 8mm hole to be drilled in the fiber guide to clear all LEDs.
Clean the heatsink thoroughly. Apply thermal paste and mount the new board. Reassemble the lamp.
