Description

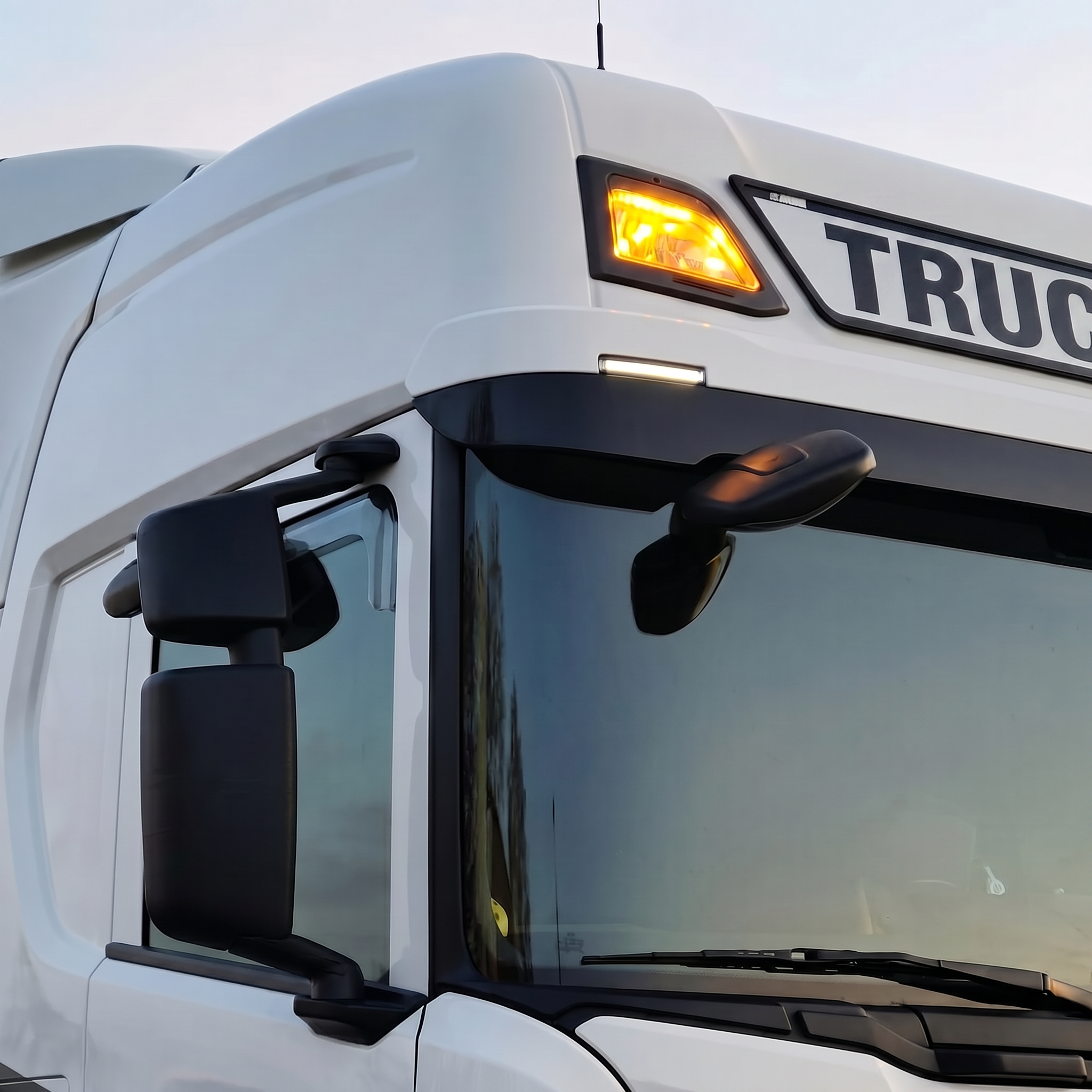

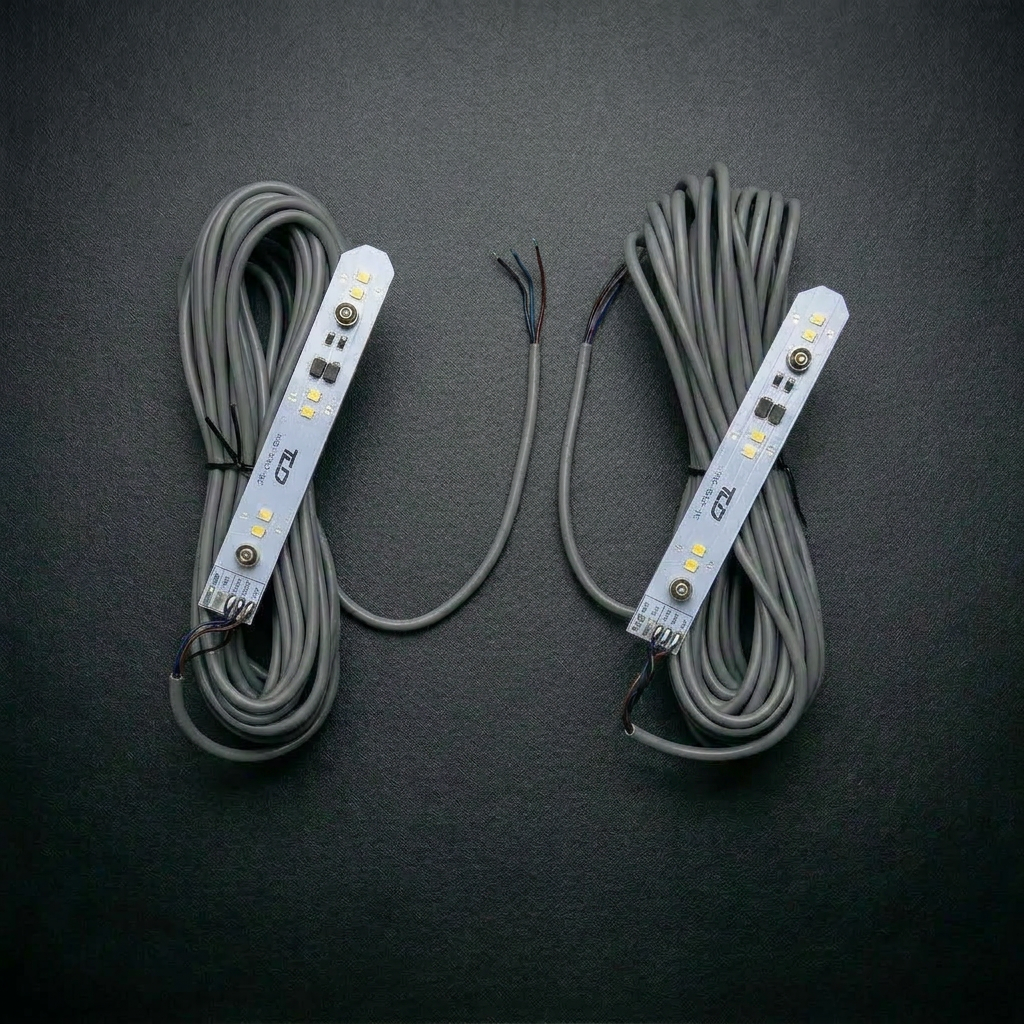

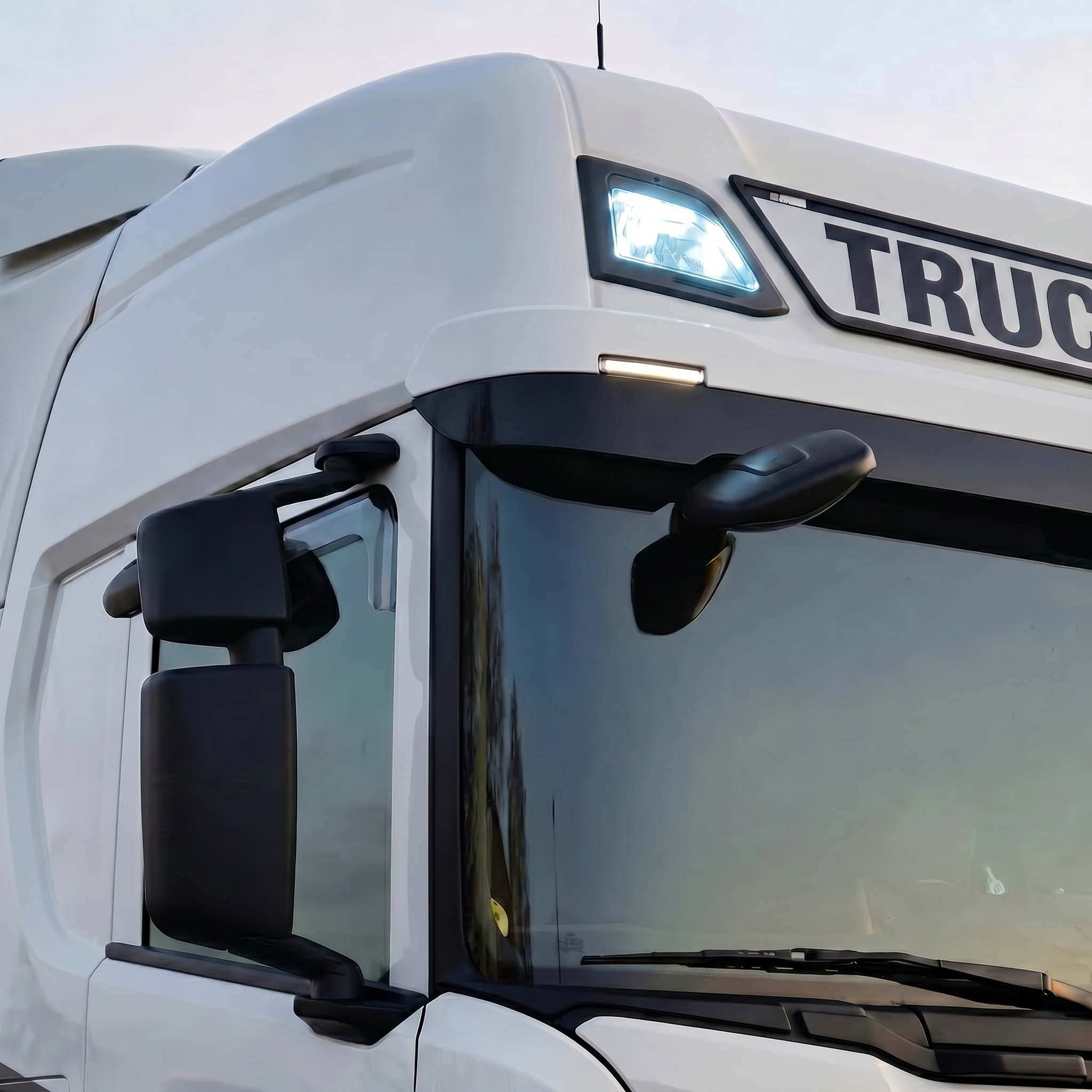

Each board features 6 high-power LEDs that illuminate the existing reflector — turning your stock roof lamps into bright, clean dual color position lights.
Dual Color Two colors in one board. One minus wire, two plus wires — one per color. Use a toggle switch to switch between colors. Never run both colors simultaneously.
Cable length: 3 meters per board.
Installation Remove the lamp from its frame. Use the included drilling template on the lamp base — drill one 20mm hole and two 3.5mm mounting holes. Clear all debris before fitting.
Feed the board through the large hole. Secure with the included M3 bolts through the two small holes into the solder-nuts on the board. Apply thread glue to bolt heads to seal against water ingress.
Seat the rubber gasket firmly into the hole. Apply silicone grease to the gasket for a watertight seal.
