Description
DESCRIPTION

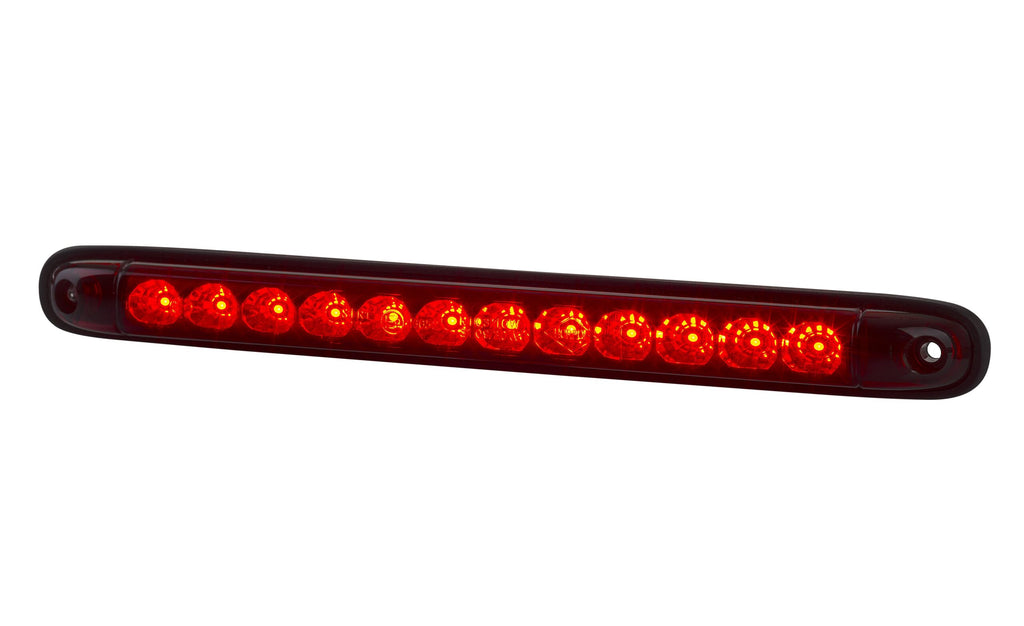

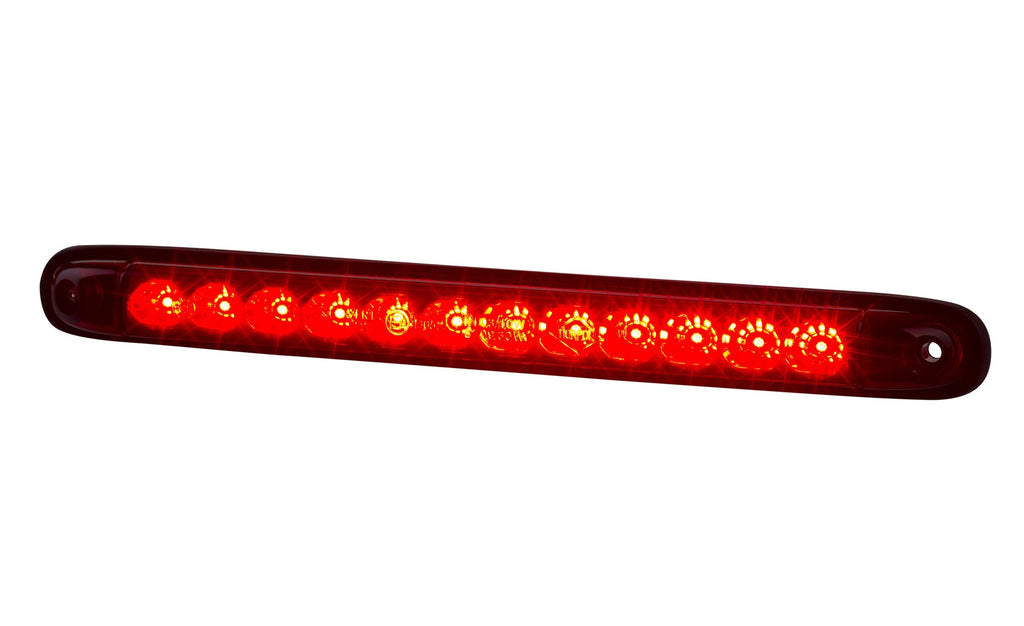

Two-function multifunction lamp: brake and positioning light. The lamp is equipped with 12 LEDs.
Specification of cores:
white - ground
red - brake light
black / brown - position light
Lamp type: LED
Lamp LZD 2247 has the approvals : E9 ECE R07.
TECHNICAL DATA SHEET
| LED light | yes |
| Lamp category | multifunction |
| Type | HOR 86A |
| Side | universal |
| Supply voltage | 12/24 V |
| Cable | 3×0,5mm2; 1m |
| Ingress protection rating | IP 68 |
| LED quantity | 12 |
| Rear position light | yes |
| Brake lights | yes |
