Description
The Ledson Vega S Compact LED Auxiliary Light is designed for installations where space is limited but strong long-range illumination is still required. Its compact aluminium housing, low weight and focused spot beam make it ideal for discreet mounting without sacrificing performance.
Product Description
Vega S, where “S” stands for Spot, is developed as a compact auxiliary light for vehicles where mounting space is restricted or where a more discreet installation is preferred.

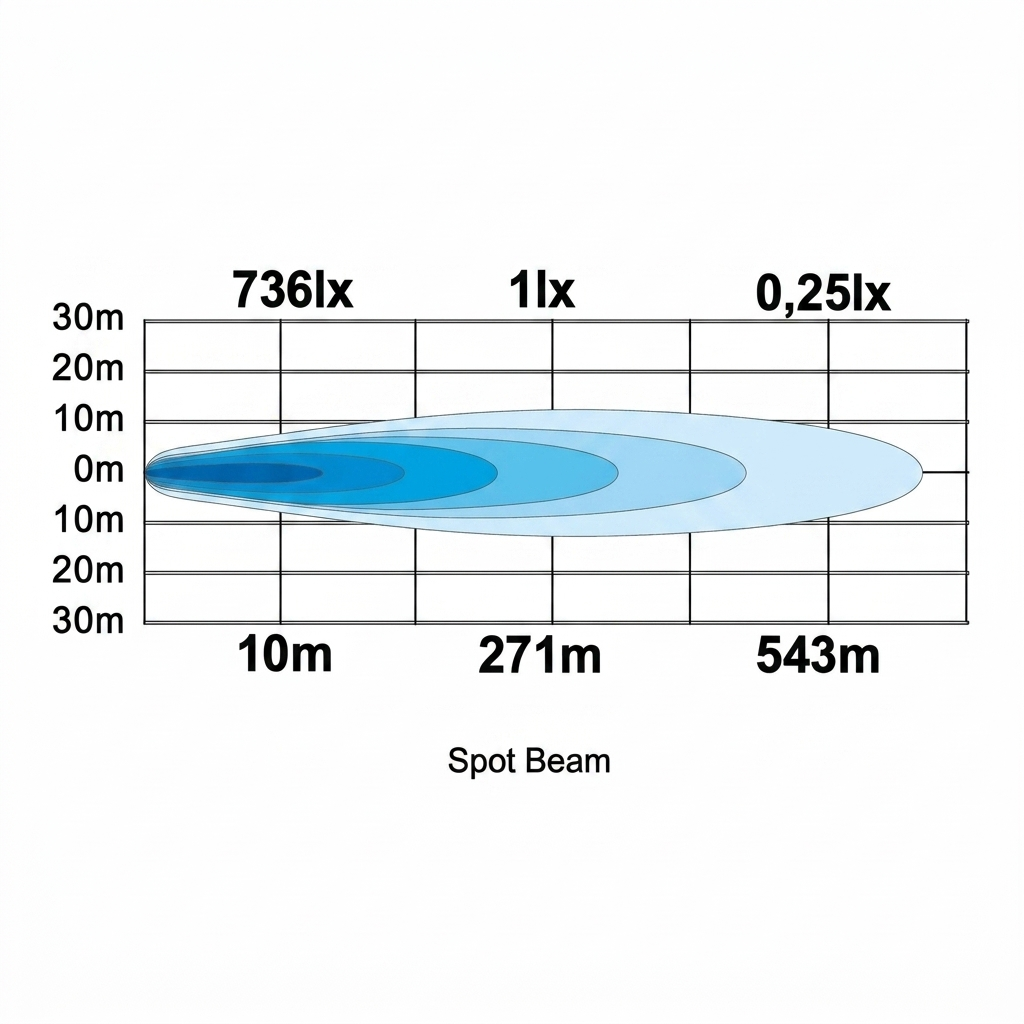

The focused spot beam provides approximately 10° light spread, delivering excellent long-distance visibility. The light reaches 1 lux at 271 meters and approximately 0.25 lux at 543 meters.
The housing is manufactured from aluminium for durability and effective heat dissipation. A built-in pressure equalization membrane helps reduce the risk of condensation inside the lamp.
The product is supplied with a DT connector and adjustable mounting hardware for installation.
| Technical Specifications | |
|---|---|
| Brand | Ledson |
| Product Type | LED Auxiliary Light |
| Function | Work / Auxiliary Light |
| Beam Pattern | Spot Beam |
| Light Spread | Approx. 10° |
| Brightness, Theoretical | 4800 lm |
| 1 Lux Distance | 271 m |
| 0.25 Lux Distance | 543 m |
| Color Temperature | 5700K (Cold White) |
| LEDs | 4 × 10W Osram LEDs |
| Power, Actual | 40W |
| Power, Theoretical | 40W |
| Voltage | 10–30V DC |
| Current @ 12V | 3.39A |
| Current @ 24V | 1.62A |
| Connection | DT Connector |
| Housing Material | Aluminium |
| Mounting | Adjustable Bracket |
| Pressure Equalization Membrane | Yes |
| IP Rating | IP69K |
| Area of Use | Outdoors |
| E-Marked | No |
| Warranty | 36 Months |

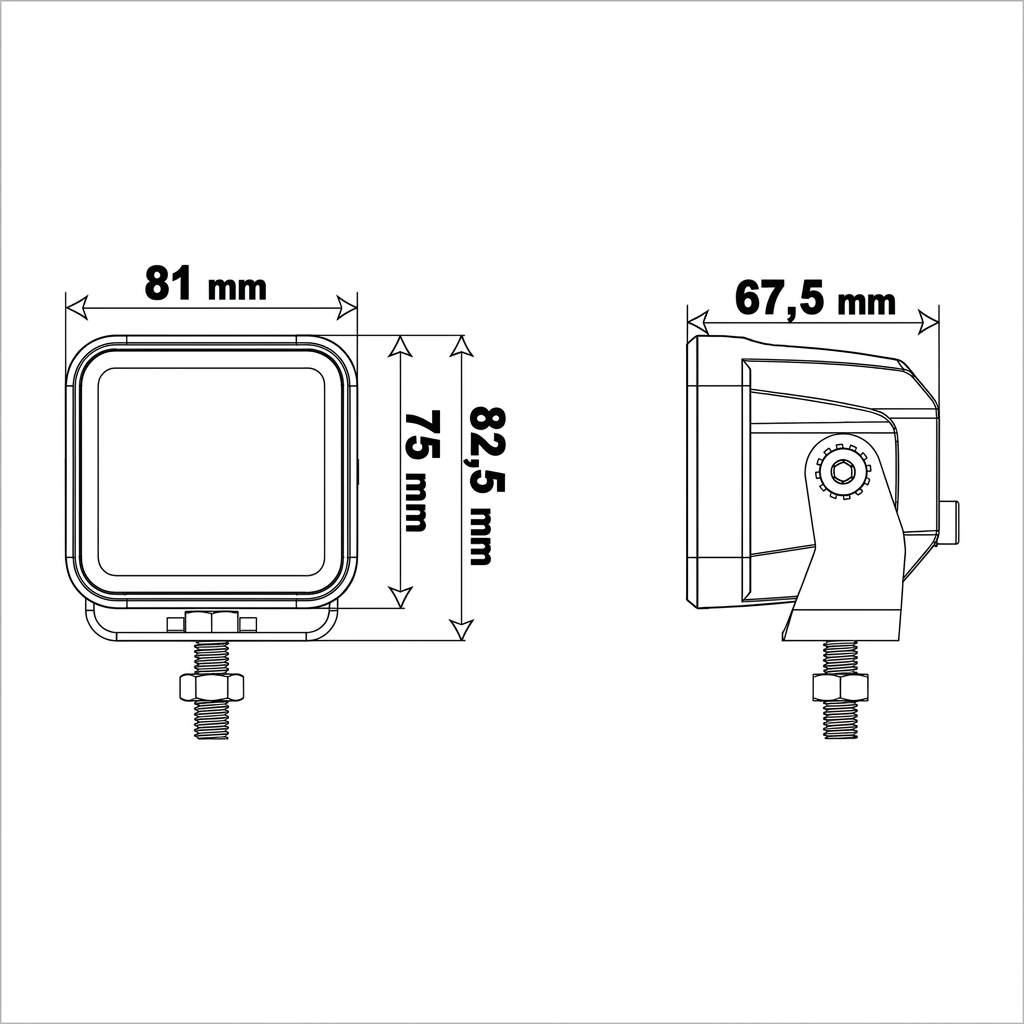

| Dimensions & Weight | |
|---|---|
| Height | 75 mm (excluding bracket) |
| Width | 81 mm |
| Depth | 67.5 mm |
| Weight | 365 g |
| Included | |
|---|---|
| DT Connector | Included |
| DT Connector Male with Splice | Included |
| Mounting Hardware | Included |
| Adjustable Bracket | Included |
The DT connector must not be cut. Cutting the connector increases the risk of moisture entering the light and may void the product warranty.
