Description
✓ Raptor 15RF with recessed mounting
✓ ECE R23 - Approved as reverse light
✓ Very discreet in its size

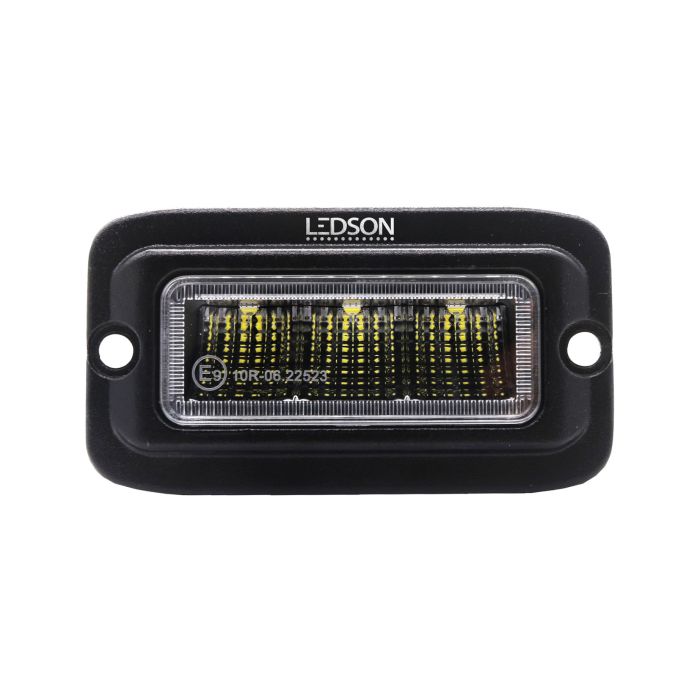

LEDSON Raptor 15RF is a small reverse light/working light that gives you a wide light image. Because of the recessed mounting Raptor 15 RF becomes one with the vehicle and does not protrude, which gives a more discreet appearance. Suitable as an auxiliary light for smaller vehicles (ATV, UTV, snowmobile, motorcycle)
Specifications:

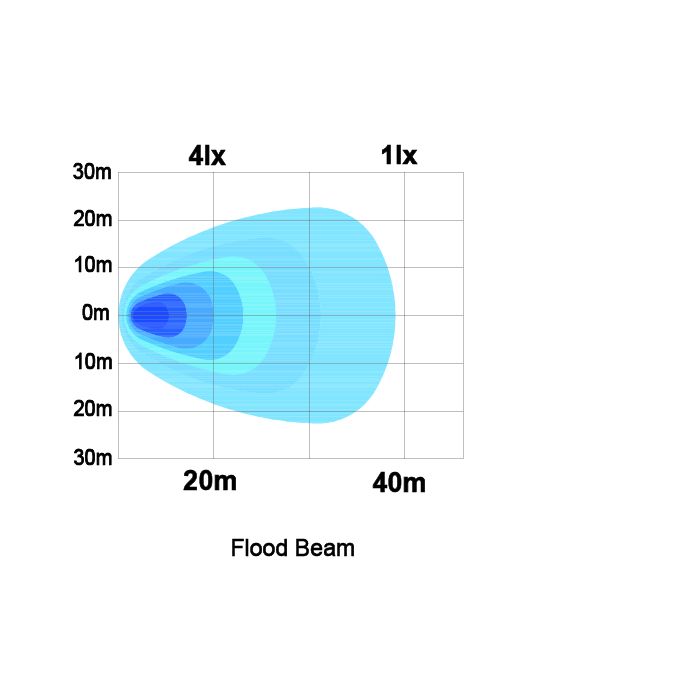

- Wide light image (flood)
- ECE R10 (EMC-secured)
- ECE R23 (approved as reverse light)
- 1560 theoretical lumens, 1203 actual lumens
- Light scattering: 45 °
- Can be used both as a reversing light or as a working light
- DT contact
Technical data:
- 3 x 5 W Osram LED (total 15W)
- IP67 (waterproof)
- 10-32 V

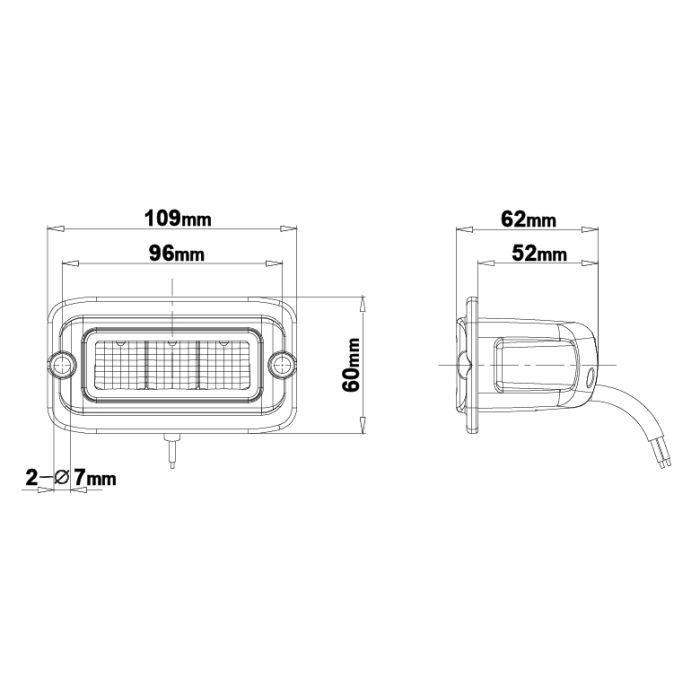

Dimensions and weight:
- Width: 109 mm
- Height: 60 mm
- Depth: 62 mm
- Weight: 420 gram
| Technical Specifications | |
|---|---|
| E-marked | ECE R23 |
| Socket | Direct cable connection |
| Height | 60mm |
| Delivered as | pcs |
| Voltage | 10–32 V |
| Brightness, actual | 1203 lm |
| Brightness powerboost, actual | 0 lm |
| Brightness powerboost, theoretical | 0 lm |
| Brightness, theoretical | 1560 lm |
| Function | Work light |
| Connection (connector type) | 1 x DT |
| Colour | White |
| Depth | 62mm |
| Warranty | 36 months |
| Beam pattern | Flood / Headlight |
| Number of LED | 3 pcs |
| Light spread | Array |
| Area of use | Outdoors |
| Effect (Theoretical) | 15W |
| Connectors | 1 x DT |
| Light source | LED |
| Position | Reverse light |
| Manufacturer | Ledson |
