Description
Treat yourself to the best. Epix30+ stands out from the crowd with a self-developed sporty design, created with today’s modern cars in mind. One world-unique feature is its position lights, fully integrated into the reflector.
The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in a LED bar, you’ll find with Epix30+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go ”off-road". Approved R65 strobe lights ensure your visibility when working on the road and keep you safe in all weather and times of the day. Self-developed smart mounts ensure easy installation almost anywhere on the vehicle, however you prefer.
Epix+ series is for you who want a futuristic experience

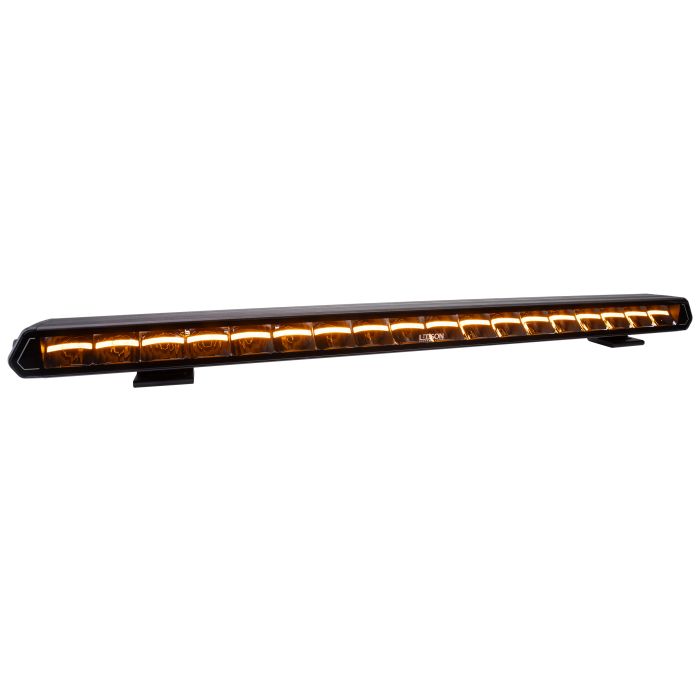

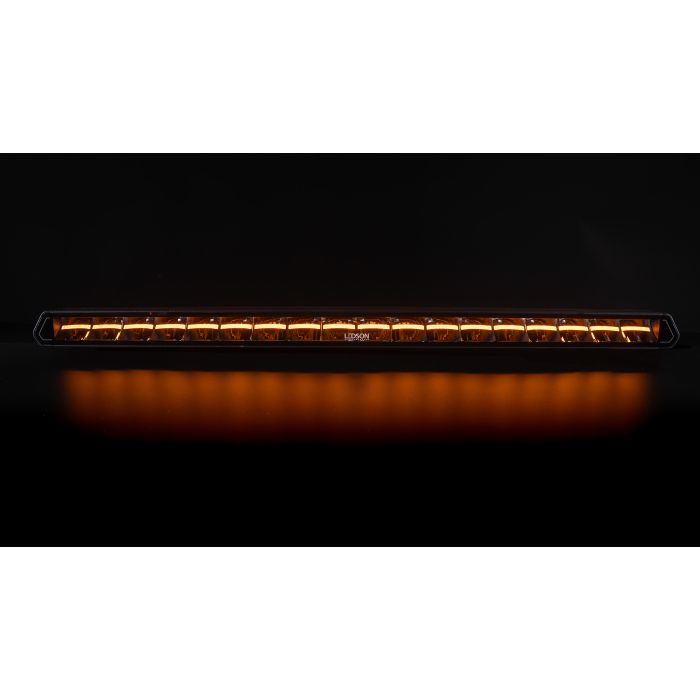

The design of the bar is uniquely developed by Ledson and is in harmony with today's most modern cars, taking your vehicle to the next level. Its dynamic position light turns on with a powerful movement that neatly guides the light from one side of the bar to the next before fully lighting up. The position light is integrated into the reflector, a completely unique feature that makes you stand out a little extra.
Powerboost: how much light do you want?
As if this wasn’t enough to look forward to, you also have the option to use Powerboost. Simply tighten or loosen the screw in the back of the LED bar to switch between E-approved mode or ”off road” Powerboost mode, for occasions when you need maximum brightness on the road ahead.

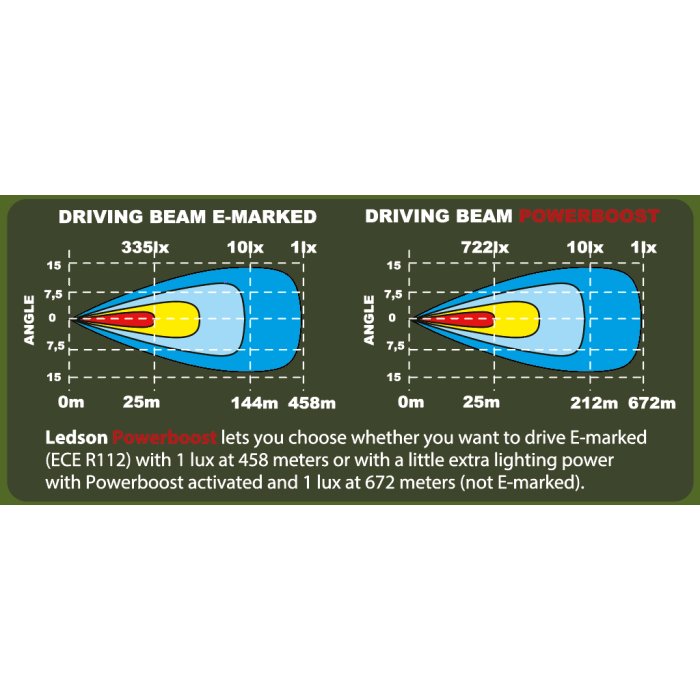

Driving Beam light pattern
Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.
| Brand | Ledson |
| Width | 740 mm |
| Height | 43 mm |
| Depth | 61 mm |
| Voltage | 9–36 V |
| Power consumption | 270 W (18 × 15 W LEDs) |
| Lumen (theoretical) | 23 200 lm |
| Lumen (actual) | 16 300 lm |
| 1 lux @ | 458 m (normal), 672 m (Powerboost) |
| Color temperature | 5000K |
| Beam pattern | Driving beam |
| Position light | Xenon white or yellow/orange |
| Housing material | Aluminium |
| Lens material | Polycarbonate |
| Connector | DTP 2-pin + DT 2-pin |
| IP rating | IP69K |
| Weight | 2.25 kg |
| E-approved | ECE R112 (Ref. 50), R7, R10 |
| Warranty | 36 months |
