Description

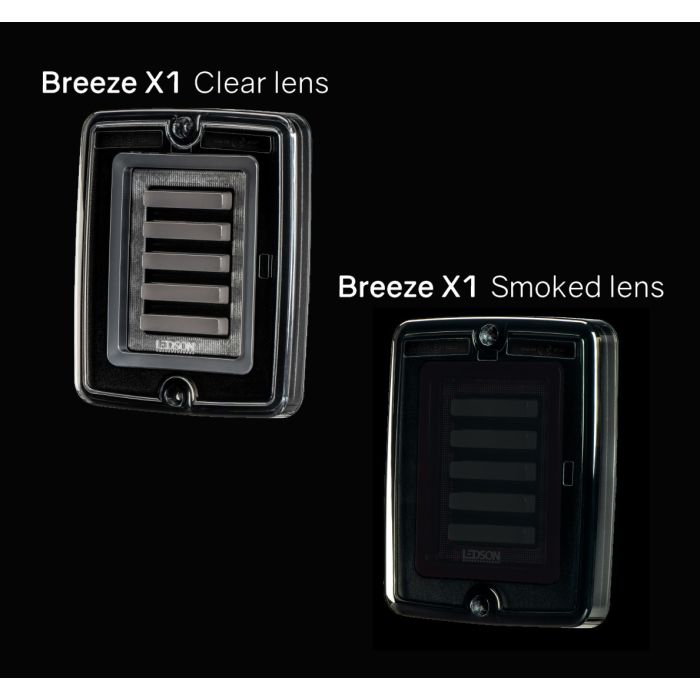

✓ Breeze X1 transparent/smoked with an irresistible style
✓ Features tail light, brake light and turn signal light
✓ ECE R148 - Approved for all functions

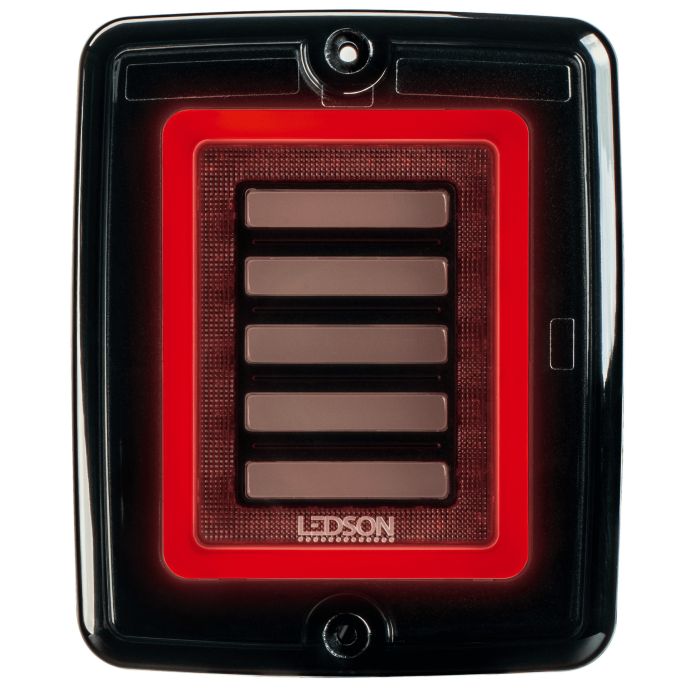

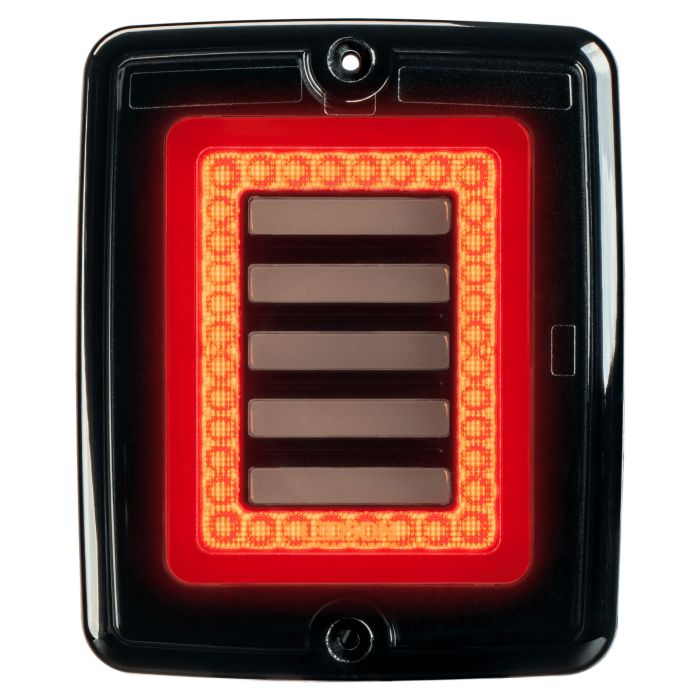

Breeze X1 from Ledson is an ultra-slim tail light, just 28 mm deep, combining sleek, modern design with cutting-edge technology. Perfect for those looking to give their vehicle a sophisticated and contemporary look without compromising functionality.

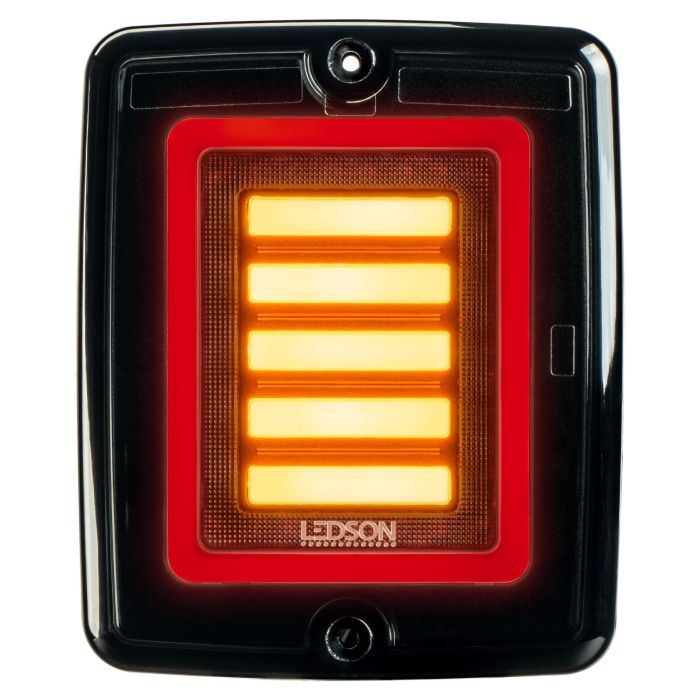

In addition, the version with indicator features a built-in dynamic indicator function, allowing you to connect up to four lights per side.
It can be mounted both horizontally and vertically, with both mounting options E-marked according to ECE R148. The ultra-slim design and generous 2.5-meter cable length make this tail light easy to install.
Synchronized Turn Signals: To ensure all turn signals on the same side flash simultaneously, connect all the yellow cables together on that side.
Dynamic turn signal: To achieve a dynamic turn signal, connect the yellow cable from the most inner light as in signal from the existing turn indicator signal. Then connect the green cable from the most inner light to the yellow cable on the light beside the first and continue this pattern from the inner to the outer lights.
| Lens | Smoked or Clear |
|---|---|
| Type | Multifunction Tail Light |
| E-marked | ECE R148 (approved for all functions) |
| LED Count | 162 pcs |
| IP Rating | IP67 (waterproof & dustproof) |
| Voltage | 10–48V |
| Warranty | 36 months |
| Width | 110 mm |
| Height | 133 mm |
| Depth (total) | 28 mm |
| Depth (recess) | 10 mm |
| Cable length | 2.5 m |
| CC | 115 mm |
