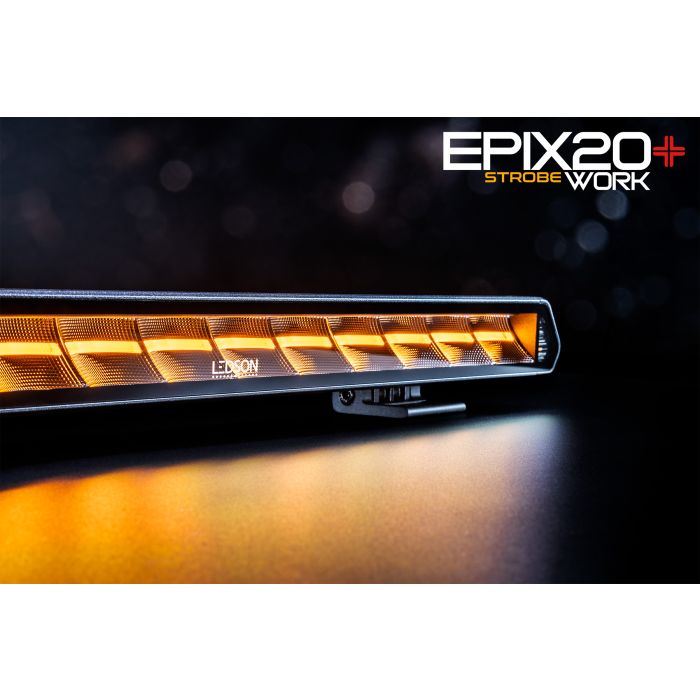

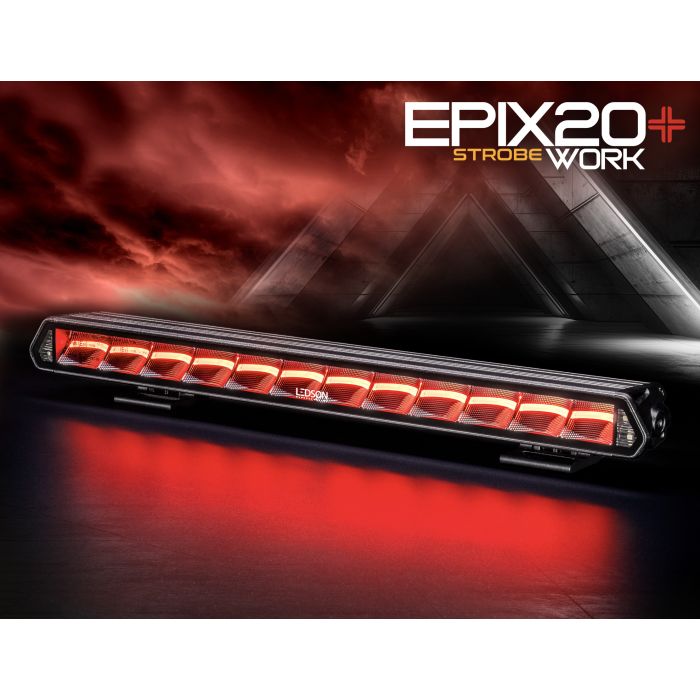

Epix20+ Work Strobe LED Light Bar – 180W R65 Approved Work Light with Position Light

The Epix20+ Work Strobe LED light bar combines powerful 180W work lighting, integrated R65-approved strobe warning lights, and a modern design made for today’s trucks, vans, and work vehicles. Designed for professionals who demand both performance and visibility, this LED bar delivers 11,800 actual lumens, a 120° wide beam pattern, and a working range of 143 meters at 1 lux.

Perfect for construction vehicles, trucks, recovery vehicles, agricultural machinery, and service vehicles, the Epix20+ ensures maximum illumination and increased safety on the road or job site.

---

Powerful 180W LED Work Light Bar

With 18 high-performance 15W LEDs, the Epix20+ produces strong, natural light with a 5000K color temperature. The wide 120° beam pattern spreads light across large working areas, improving visibility and reducing dark spots when working at night or in poor weather conditions.

Key lighting performance

• 180W high-output LED work light

• 11,800 actual lumens (15,500 theoretical)

• 120° wide beam pattern for maximum coverage

• 143 m range at 1 lux

• Natural white light (5000K)

---

Integrated R65 Strobe Warning Lights

The Epix20+ Work Strobe also features integrated strobe warning lights with 10 selectable flash patterns, including an ECE R65-approved pattern for road use. This makes the light bar ideal for vehicles that require both work lighting and warning visibility.

Strobe features

• 10 flash patterns

• Synchronization and asynchronous modes

• ECE R65 approved warning pattern

• Excellent visibility for roadside or worksite safety

---

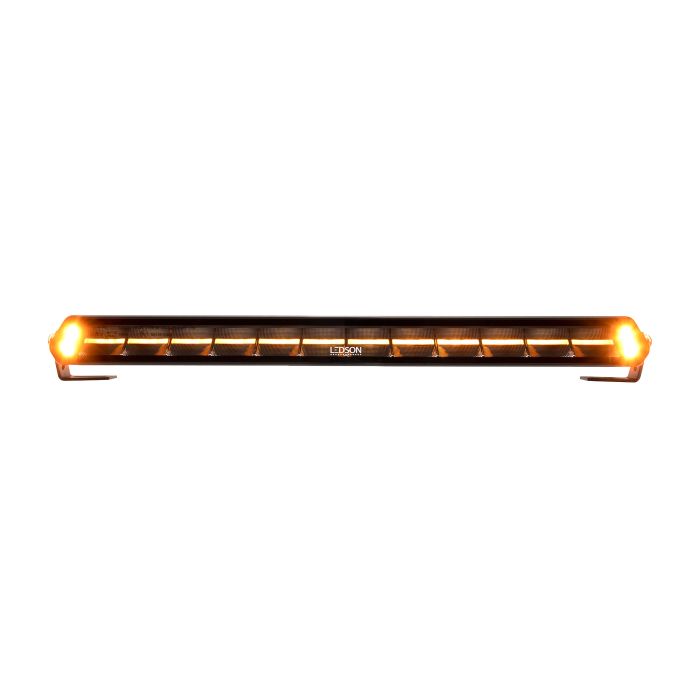

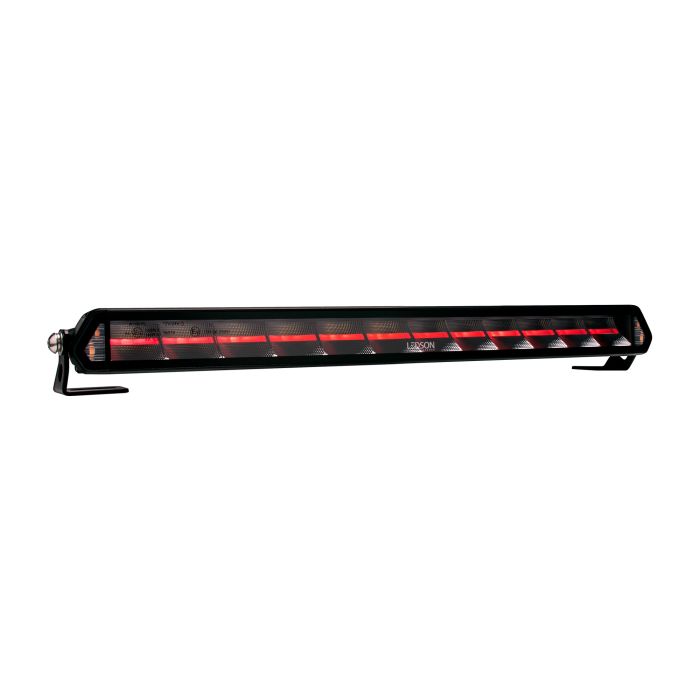

Selectable Position Lights (Red or Amber)

The Epix series is known for its distinctive dynamic position lights, integrated directly into the reflector design. You can choose between red or amber (yellow-orange) position lights, both ECE approved for road use, adding both style and safety to your vehicle.

---

Built for Professional Vehicles

The Epix20+ LED work bar is built with durability and reliability in mind. Its aluminum housing, polycarbonate lens, and IP69K protection rating make it resistant to dust, water, and harsh environments.

Durability features

• IP69K waterproof and dustproof

• Heavy-duty aluminum housing

• Polycarbonate lens

• Pressure equalization membrane

• Advanced electronic heat management

---

Flexible Mounting with Smart Brackets

Ledson’s smart mounting system allows the Epix20+ light bar to be installed almost anywhere on your vehicle. The compact design (510 mm width) makes it suitable for roof mounting, bumper installation, work vehicles, trucks, and off-road vehicles.

---

Electrical Specifications

• Voltage: 9–36V (compatible with 12V and 24V systems)

• Power consumption: 12A at 12V / 5A at 24V

• Connector: DT 6-pin connector included

• EMC approved ECE R10

For installation we recommend the DT relay wiring harness (part no. 7801006) for a safe and reliable connection.

⚠ Important: Do not cut the DT connector. Modifying the connector can lead to moisture damage and will void the warranty.

---

Dimensions

• Width: 510 mm

• Height: 43 mm

• Depth: 61 mm

• Weight: 2 kg

---

Included in the Package

• Epix20+ Work Strobe LED light bar

• Mounting bolts and screws

• Smart mounting brackets

• DT 6-pin cable

• Installation instructions

---

Perfect for

• Trucks

• Construction vehicles

• Service vehicles

• Agricultural machinery

• Recovery vehicles

• Off-road vehicles

---

✅ Professional LED work light + warning strobe in one bar
✅ R65 approved safety lighting
✅ Modern design with dynamic position lights
