Description
Thanks to the use of 34 diodes, the lamp provides excellent visibility in all conditions, which makes it an ideal solution for various types of vehicles.
Key product features:
– The LZD 3141 multifunction lamp provides three light functions: position, braking and dynamic direction indicator.

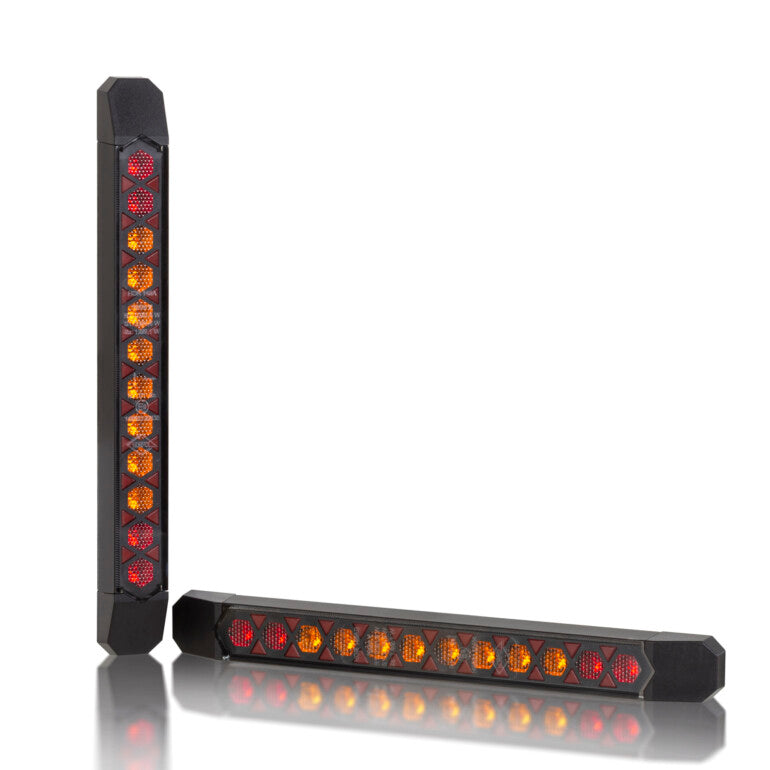

– The lamp is universal in installation, it can be mounted on both the left and right side of the vehicle.
– Supply voltage. The lamp operates in the voltage range of 12/24 V.
– Wide operating temperature range from -30°C to +50°C. The lamp is resistant to various weather conditions, which ensures its reliability in extreme temperatures.
– High resistance. The lamp is fully hermetic (compliance with the degree of protection against moisture IP 68), resistant to high and low temperatures and mechanical damage.
– The operation of the lamp is also guaranteed in a way that does not emit electromagnetic interference and is electromagnetic interference-resistant, which is confirmed by the EMC certificate.
| Light group | HOR 145AD | LED quantity | 34 |
| Light category | multifunction rear | Rear position light | yes |
| Supply voltage | 12/24 V | Operating temperature range | from -30°C to +50°C |

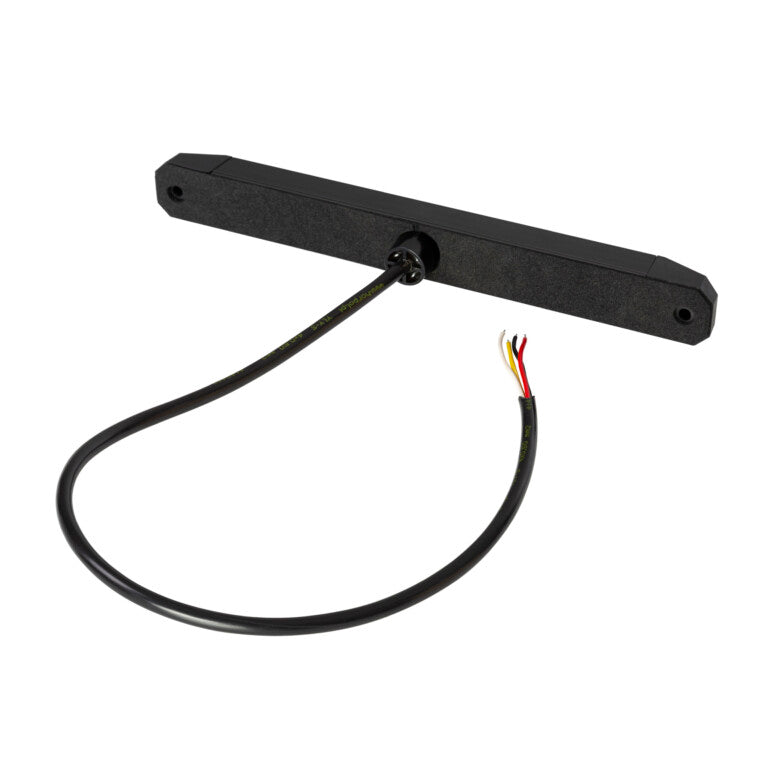

| Cable | 4×0,5 mm²; cable length 1 m | Side | universal |
| Dynamic rear indicator | yes | Brake light | yes |
| LED light | yes | Ingress protection rating | IP 68 |
| Lamp functions | – rear position light (0.9/1.4 W) – brake light (3.6/4.6 W) – dynamic direction indicator (1.6/2.1 W) |
||
