Description
A high-performance 40" LED driving light bar combining a powerful driving beam, dynamic selectable position light and integrated ECE R65 warning strobe. Designed for trucks, commercial vehicles and off-road applications where maximum visibility, modern styling and multiple lighting functions are required.
One multifunction LED bar with selectable white or amber position lighting, 10 warning flash patterns and a high-output Powerboost mode for off-road use.

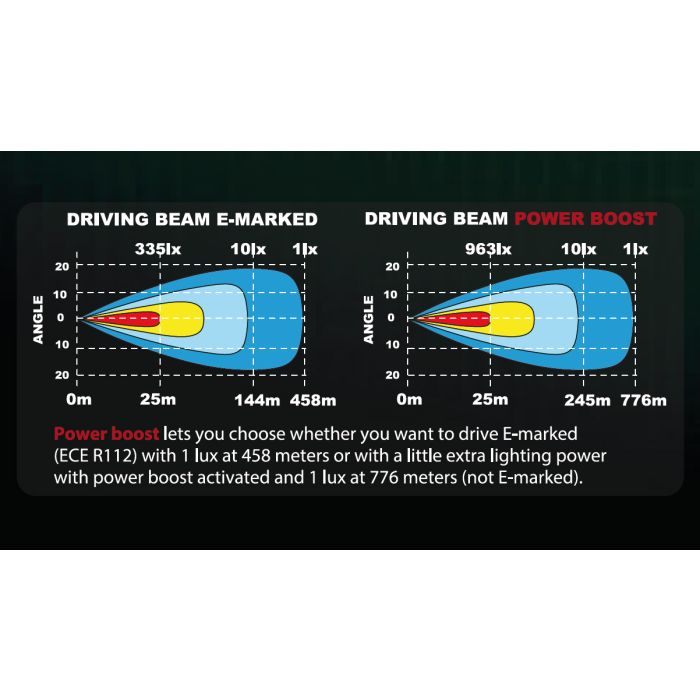

Powerful Driving Beam
The optimized Driving Beam pattern delivers a wide and long-range light distribution designed to complement the vehicle’s existing high beams. In Powerboost mode, output reaches up to 23,000 actual lumens with a claimed range of up to 776 metres at 1 lux.
Dynamic Dual-Color Position Light
The integrated position light can be selected in white or amber and features a dynamic start-up sequence. The position-light elements are integrated directly into the reflector design for a clean and distinctive appearance.
Integrated R65 Warning Strobe
The built-in amber warning function offers 10 selectable flash patterns, including synchronized and asynchronous sequences. The warning function is approved according to ECE R65.
Key Features
- 40" multifunction LED light bar
- Driving Beam light pattern for wide and long-range illumination
- 23,000 actual lumens in Powerboost mode
- Up to 776 m @ 1 lux in Powerboost mode
- Selectable white or amber position light
- Dynamic position-light start-up sequence
- ECE R65 approved amber warning strobe
- 10 selectable strobe patterns
- 5000K neutral white driving light
- 9–36V compatibility
- IP69K protection against dust and high-pressure water
- Aluminium housing with polycarbonate lens
- Electronic thermal management
- Side reflective optics
- Flexible side / rear mounting options
Technical Specifications
| Size | 40" |
| Operating Voltage | 9–36V DC |
| LED Power | 390W theoretical (26 × 15W LEDs) |
| Powerboost Output | 33,000 theoretical / 23,000 actual lumens |
| E-Approved Output | 5,760 theoretical / 4,600 actual lumens |
| Powerboost Range | 776 m @ 1 lux |
| E-Approved Range | 458 m @ 1 lux |
| Color Temperature | 5000K Neutral White |
| Beam Pattern | Driving Beam |
| Position Light | White / Amber – Dynamic |
| Warning Function | Amber R65 Strobe – 10 Patterns |
| Protection Rating | IP69K |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Dimensions | 1047 × 43 × 61 mm |
| Approvals | ECE R112 / R7 / R65 / R10 |
| Warranty | 3 Years |
Connections
- 2-pin DTP connector for the main driving beam
- 4-pin DT connector for position light and strobe functions
Package Includes
- 1 × 40" multifunction LED light bar
- Side / rear mounting hardware
- Mounting bolts and screws
- 2-pin DTP connector
- 4-pin DT connector
Suitable Applications
Suitable for trucks, commercial vehicles, recovery vehicles, off-road vehicles and other installations requiring a powerful driving beam combined with position and warning-light functions.
Please note: Powerboost mode is intended for off-road use where permitted. Warning-light and auxiliary-light functions must be used in accordance with local regulations.
