Description

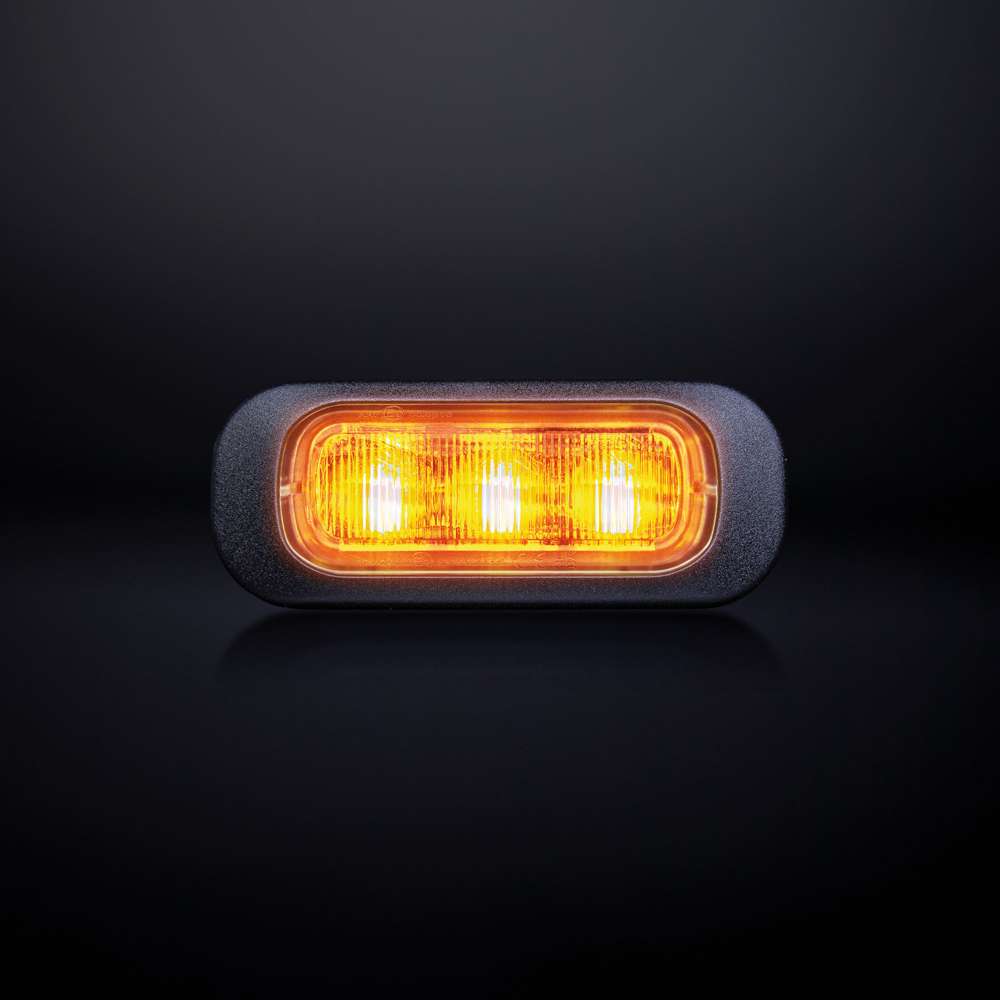

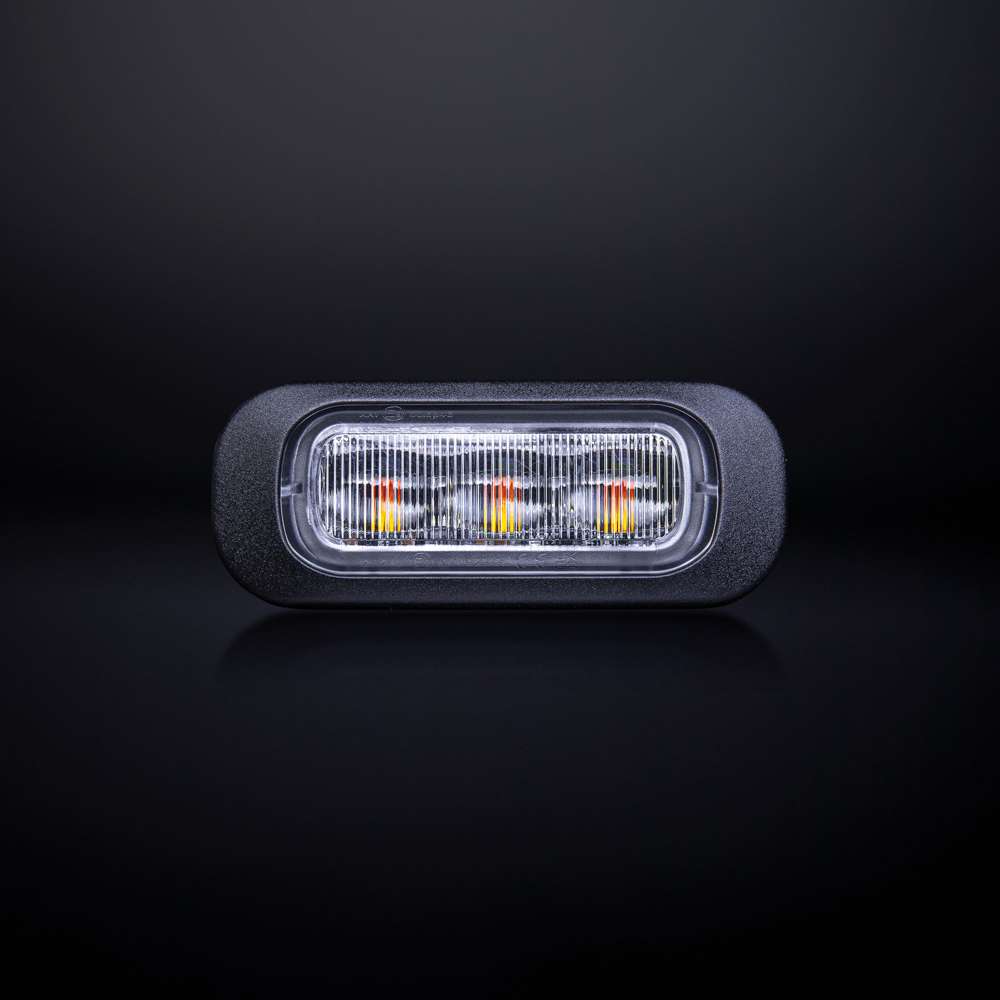

A slim and powerful amber warning light designed for trucks, recovery vehicles, agricultural machinery and construction equipment. Its dark housing and clear lens create a discreet appearance when switched off, while the three high-output amber LEDs deliver strong warning visibility when activated.
Choose between multiple amber warning patterns and synchronize up to 12 units for a clean, coordinated lighting setup.
Key Features
- Powerful amber warning light
- 21 selectable flash patterns
- Integrated cruise mode
- Can synchronize up to 12 units
- Slim, dark and discreet design
- Clear lens with 3 amber LEDs
- Suitable for horizontal or vertical mounting
- Click-on outer frame hides the mounting screws
- Frame can be painted to match the vehicle
- IP67 / IP69K protection
- ECE R65 approved warning function
- ECE R10.06 EMC approved
- 3-year warranty
Technical Specifications
| Operating Voltage | 10–32V DC |
| Rated Power | 12W |
| Power Consumption | 7W |
| LED Color | Amber |
| Functions | Warning Light / Cruise Mode |
| Flash Patterns | 21 |
| Synchronization | Up to 12 units |
| Dimensions | 79.2 × 31.2 × 14.8 mm |
| Mounting Hole Distance | 68 mm |
| Cable Length | 400 mm |
| Housing Material | Aluminium |
| Lens Material | Polycarbonate |
| Housing Color | Black |
| Lens Color | Clear |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -30°C to +60°C |
| Approvals | ECE R10.06 / R65 |
| Warranty | 3 Years |
Wiring
| Red Cable | Positive (+) |
| Black Cable | Negative (-) |
| White Cable | Low-intensity / cruise mode |
| Yellow Cable | Pattern selection and synchronization |
Package Includes
- 1 × Amber warning light
- Mounting screws
- Bolts
- Foam gasket
- Click-on finishing frame
Suitable Applications
Ideal for recovery trucks, service vehicles, commercial vehicles, agricultural machinery, construction equipment and other applications requiring a compact, high-visibility amber warning light.
Please note: Warning-light functions must be installed and used in accordance with local road and vehicle regulations.
